This article explains what to do when a Modbus tag has no error but the value is incorrect.
APPLICABLE PRODUCTS
All Ewon Flexy models
QUESTION
Why is the Modbus tag value incorrect on my Ewon Flexy?
ANSWER

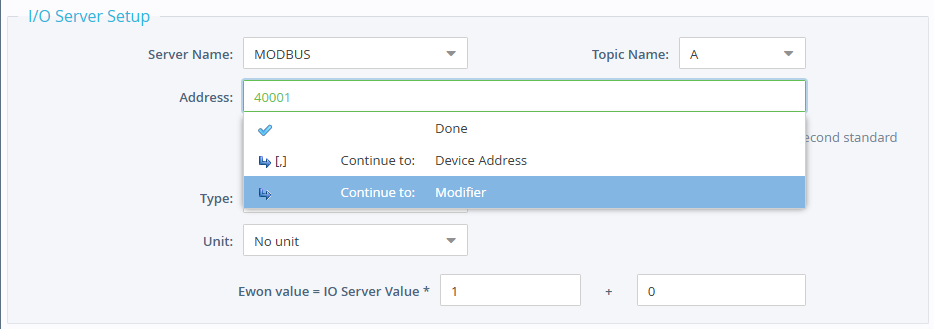

If there is no error on the Modbus tag, you can be sure that the tag communication is okay. In this case, the data is being retrieved but it's not being interpreted properly by the Flexy. After the Modbus address, the address field will suggest adding a modifier:

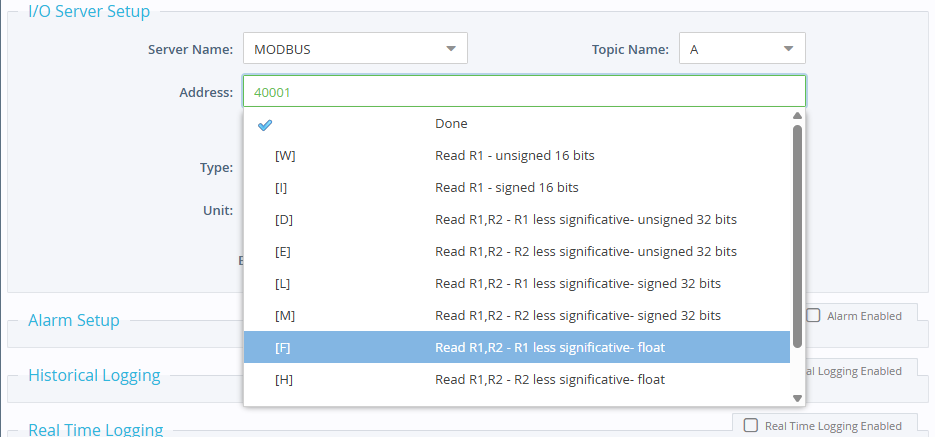

Then it will give you options to choose from:

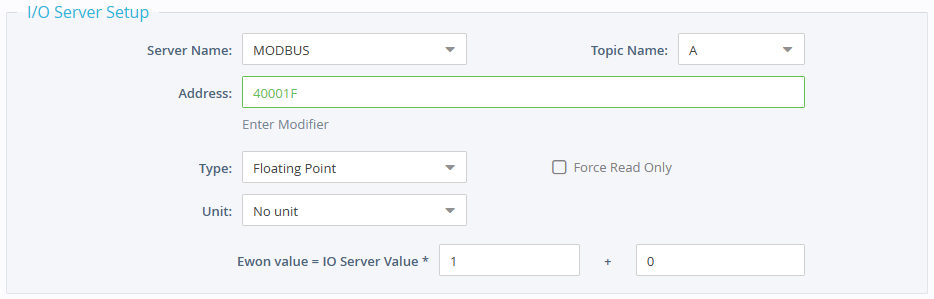

A common example is with a float/decimal value. A float value typically occupies 2 Modbus registers so the "F" modifier tells the Flexy to read two registers and put the registers in a certain order. The modifier "H" is also for a float value but with the register order swapped.
ADDITIONAL INFO
How to isolate truly bad Tags from the others?
