This article shows you how to create a serial Log on the ABC3xxx series and how to save it. So that you can share it with the Technical Support Team afterward.
APPLICABLE PRODUCTS
ABC3xxx (Anybus Communicator 2.0)
PRE-REQUISITES
Access to the Web interface of the ABC3xxx
IN THIS ARTICLE

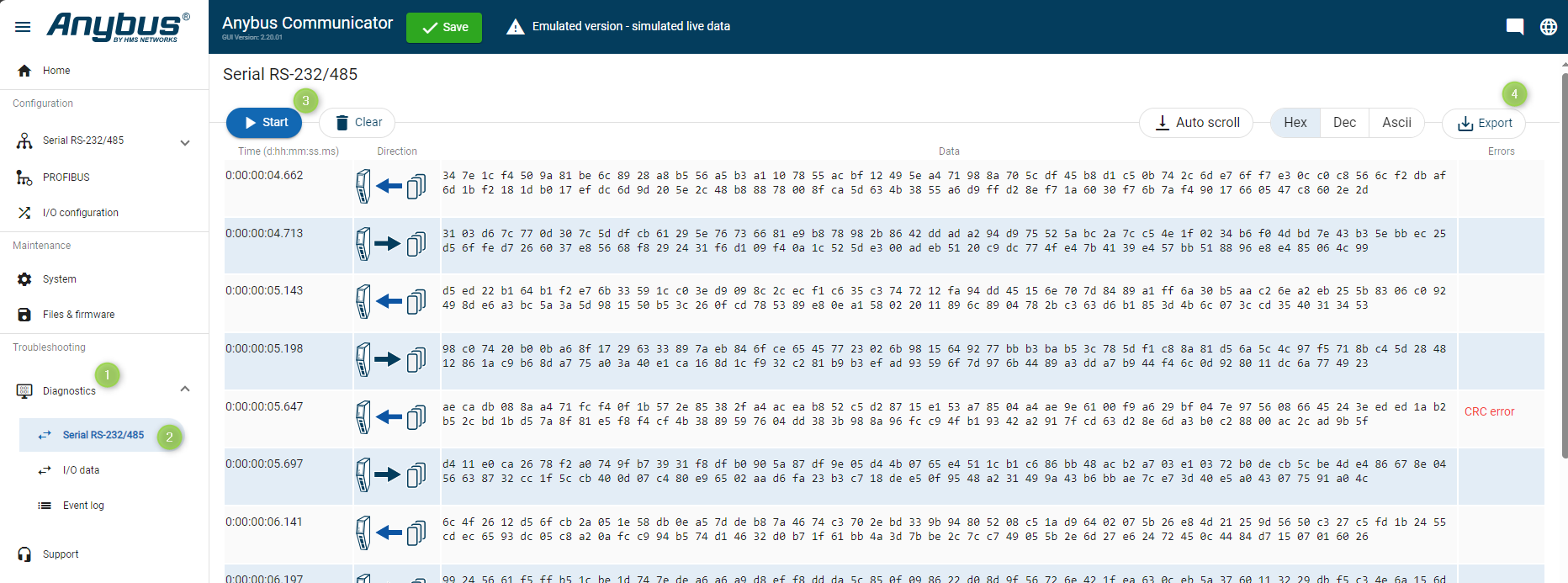

The log can be created via the menu bar "Diagnostics"(1) -> "Serial RS-232/485"(2).
Then start the recording via "Start" (3), Stop it after approx. 1-2 min. and export it via "Export" (4).
This will Download an .XLXS file that can be shared.
