Disable Encapsulation Inactivity Timeout

How to disable the Encapsulation Inactivity Timeout (object class 0xf5, instance 1, attribute 13).

APPLICABLE PRODUCTS

Ethernet/IP devices

Ethernet/IP X-gateway

Ethernet/IP CompactCom's

PRE-REQUISITES

Network access to Ethernet/IP device

Molex Ethernet/IP tool, EIPscan or similar software

IN THIS ARTICLE

• Disable Encapsulation Inactivity Timeout

Disable Encapsulation Inactivity Timeout

1. Download and install the Molex Ethernet/IP tool other tools such as EIPscan can also be used to set the attribute.
   • The Molex Ethernet/IP tool can be downloaded here

     http://www.molex.com/mx_upload/superfamily/iccc/EtherNet_IPTool.html

2. Connect to the device with your PC configured to be in the same subnet.

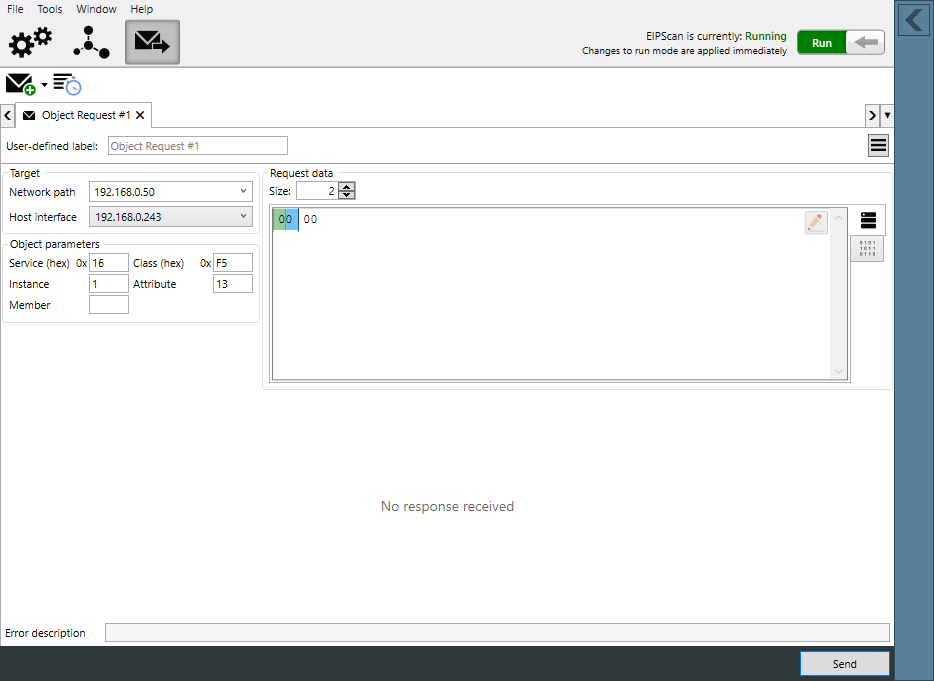

3. Launch the software and configure the message
   1. Set the devices IP in the station field
   2. Select service 16 Set Attribute Single
   3. Configure the following path.
      • Class 0xF5
      • Instance 1
      • Attribute 13
      • Data 00
   4. Click Send Request and verify the status returns Ok
