How To: Connect Crimson to Microsoft Azure SQL Database

Overview

This article explains how to configure a Red Lion / HMS device running Crimson® 3.2 to connect to a Microsoft Azure SQL Database. Azure SQL can be used as a cloud-hosted data repository for applications requiring centralized storage and access to production, process, or operational data. Azure SQL configuration requires administrative access during setup.

Applicable Products

• CR3000 Series HMIs
• Graphite® HMIs
• DA30D Data Stations
• DA50 and DA70 Controllers
• FlexEdge® devices with the appropriate licensing

SQL functionality is supported in Crimson 3.x on these platforms.

Prerequisites

Software

• Crimson® 3.2
• Microsoft Azure Subscription
• Azure SQL Database
• SQL Server Management Studio (SSMS) for verification and testing

Network Requirements

The Crimson device must be able to communicate with:

• Azure SQL Database server hostname
• TCP Port 1433

Example Azure SQL server address:



Step 1: Create an Azure SQL Database

1. Log into the Azure Portal.
2. Select Create Resource > Azure SQL Database.
3. Enter:
   • Database Name
   • Server Name
   • Region
   • Administrator Login
   • Administrator Password
4. Complete the deployment.

Record the following:

• Server Name (example: mydatabase.database.windows.net)
• Database Name
• SQL Username
• SQL Password

Step 2: Configure Azure SQL Firewall Rules

By default, Azure SQL blocks incoming connections.

1. Open the Azure SQL Database resource.
2. Navigate to Networking.
3. Add the public IP address of the network where the Crimson device is installed.
4. Save the configuration.

If the device is located behind a corporate firewall, ensure outbound TCP Port 1433 traffic is permitted.

Step 3: Verify Connectivity

From a PC on the same network as the Crimson device:



Confirm the hostname resolves successfully.



Using SQL Server Management Studio, connect with:

Successful connection confirms that DNS resolution, firewall settings, and credentials are configured correctly.

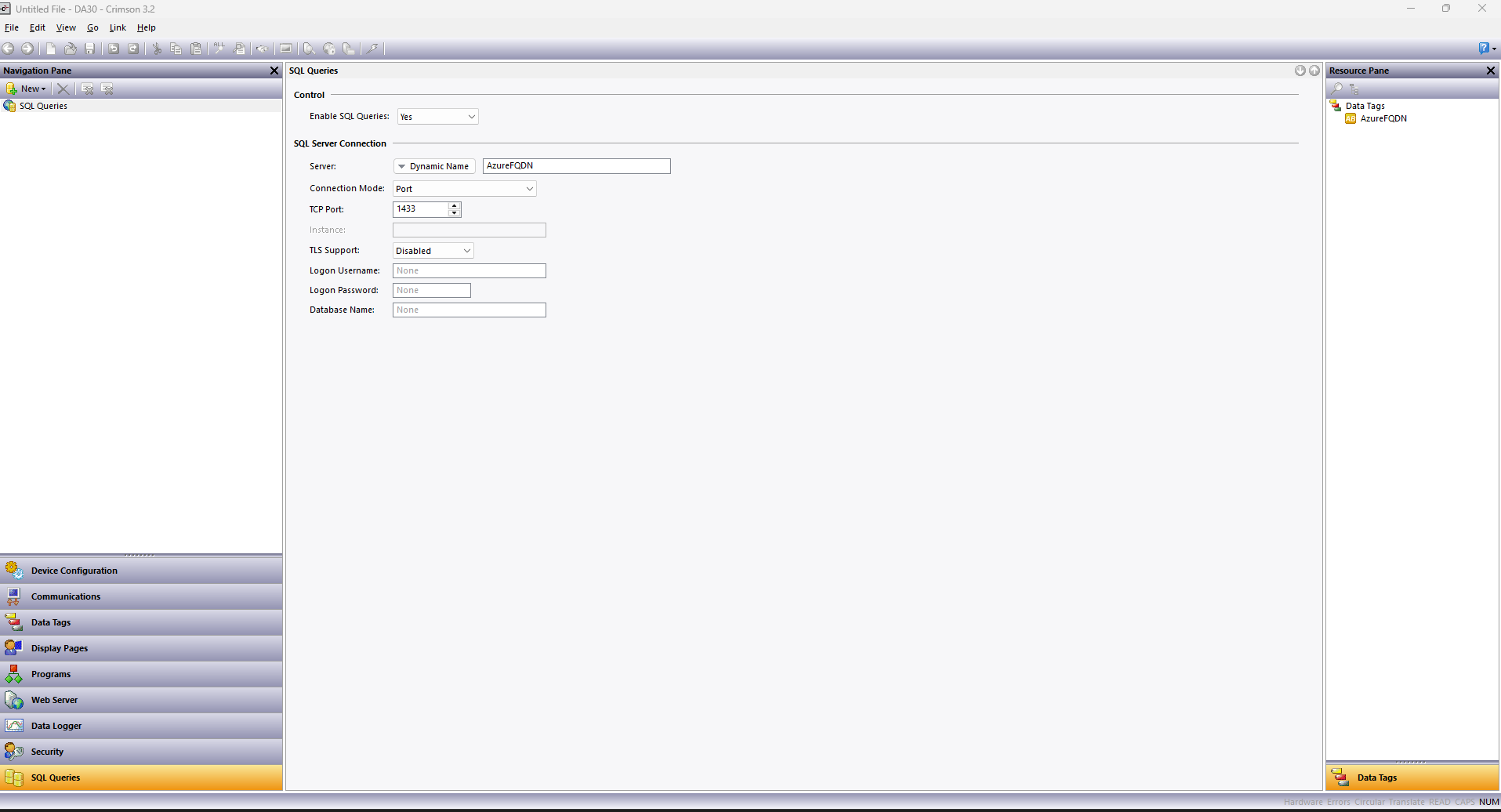

Step 4: Configure the SQL Connection in Crimson

Within Crimson 3.2:

1. Navigate to SQL Queries.
2. Set Enable SQL Queries to Yes.
3. Configure the SQL Server connection settings:

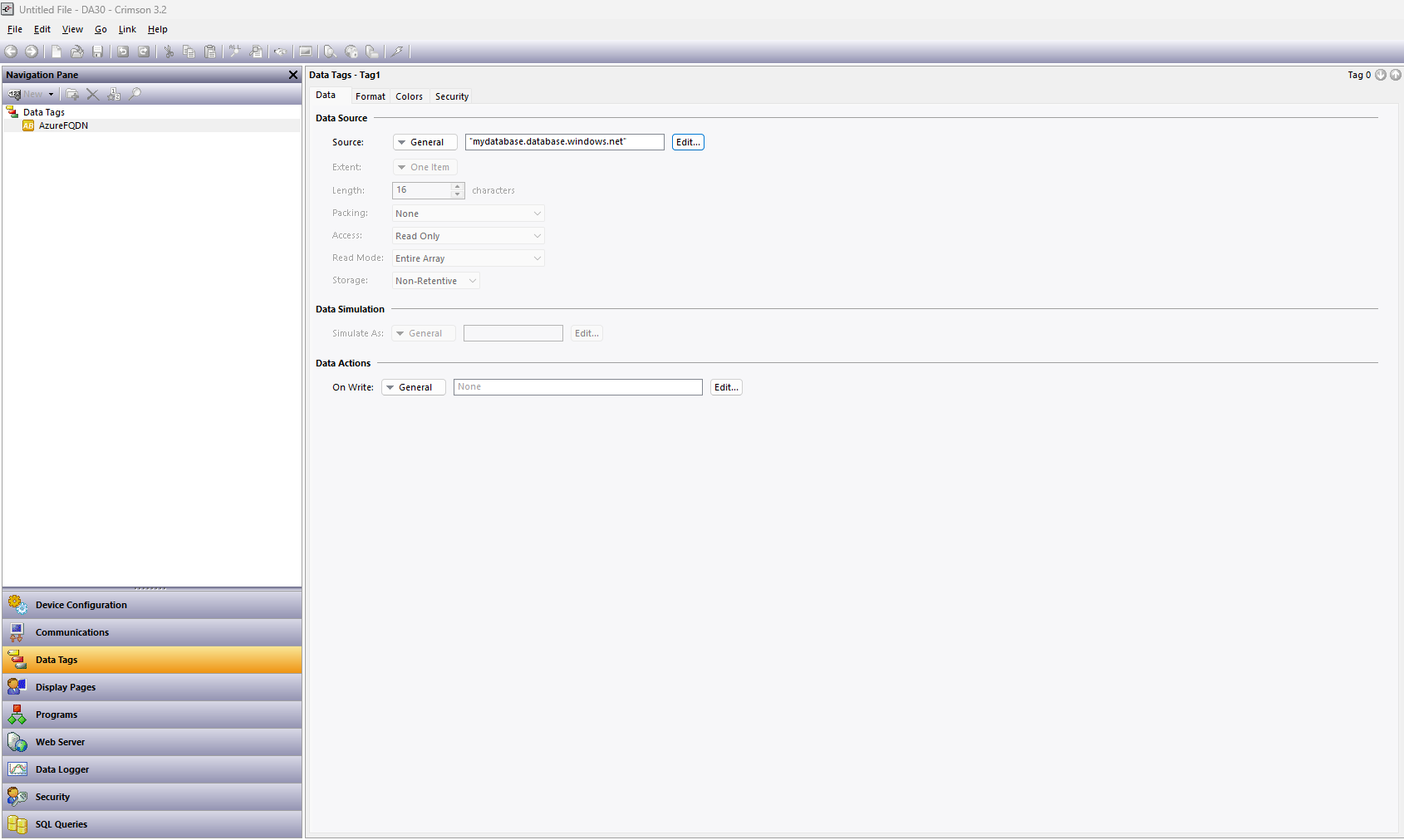

Use the fully qualified Azure SQL server name rather than an IP address. Azure SQL uses DNS-based connectivity. It is recommended to create a string tag with the source as General and the FQDN as its properties. See images below for example.





Troubleshooting

Connection Failure

Verify:

• Azure SQL firewall rules
• TCP Port 1433 access
• Correct server name
• Correct username and password
• Internet connectivity from the Crimson device
• Check TLS Support setting in SQL Queries

DNS Resolution Failure

Verify the device has access to a valid DNS server and confirm the Azure SQL hostname can be resolved.

Authentication Errors

Ensure:

• SQL Authentication is being used
• The login has access to the target database
• The username and password are entered correctly

Security Recommendations

• Create a dedicated SQL account for Crimson communications.
• Restrict Azure SQL firewall access to known public IP addresses only.
• Use strong passwords and rotate credentials according to company policy.
• Avoid using administrator credentials for routine device access.

References

• Crimson 3.x: SQL Queries
• How To: Connect Crimson to Microsoft SQL Server
• Please contact technical support if you require additional assistance using this link: HMS Support Portal
