Anybus Defender – Configure 1:1 NAT Using the Simple NAT Wizard

This guide explains how to configure 1:1 NAT on the Anybus Defender using the Simple NAT Wizard. It covers how to create a mapping between a LAN device and a dedicated WAN-side IP address, how to add additional mappings after the initial setup, and where the resulting configuration can be reviewed under Virtual IPs, 1:1 NAT, and LAN/WAN firewall rules.

Instructions

Anybus Defender – Configure 1:1 NAT Using the Simple NAT Wizard

The Simple NAT Wizard on the Anybus Defender provides a quick way to configure 1:1 Network Address Translation (NAT) between a device on the LAN side and an IP address on the WAN side.

With 1:1 NAT, one LAN device is represented by one dedicated IP address on the WAN network.

Example:

Device	IP Address
Defender WAN	10.10.10.53/24
Defender LAN	192.168.200.1/24
LAN Device	192.168.200.20
NAT / WAN Address	10.10.10.100

In this example, the LAN device at:

192.168.200.20

is represented on the WAN network by:

10.10.10.100

Traffic from the WAN side follows this path:

WAN Device → 10.10.10.100 → Anybus Defender → 1:1 NAT → LAN Device 192.168.200.20

For traffic initiated by the LAN device, the reverse translation is performed:

LAN Device 192.168.200.20 → Anybus Defender → Source translated to 10.10.10.100 → WAN

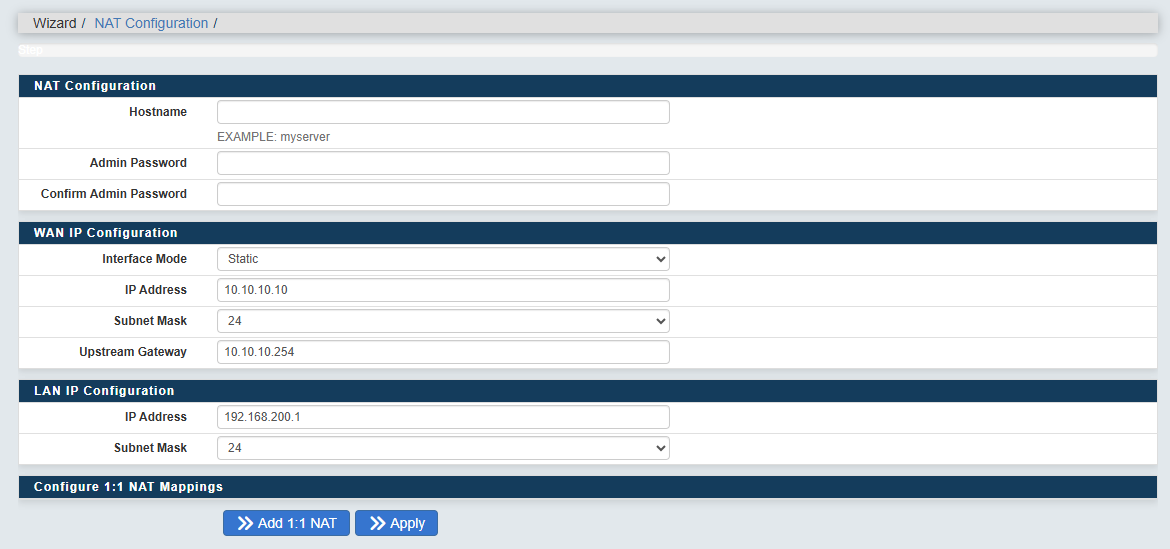

1. Open the Simple NAT Wizard

Navigate to:

Firewall → NAT → Simple NAT Wizard

Open the Simple NAT Wizard tab.

Click:

Add 1:1 NAT

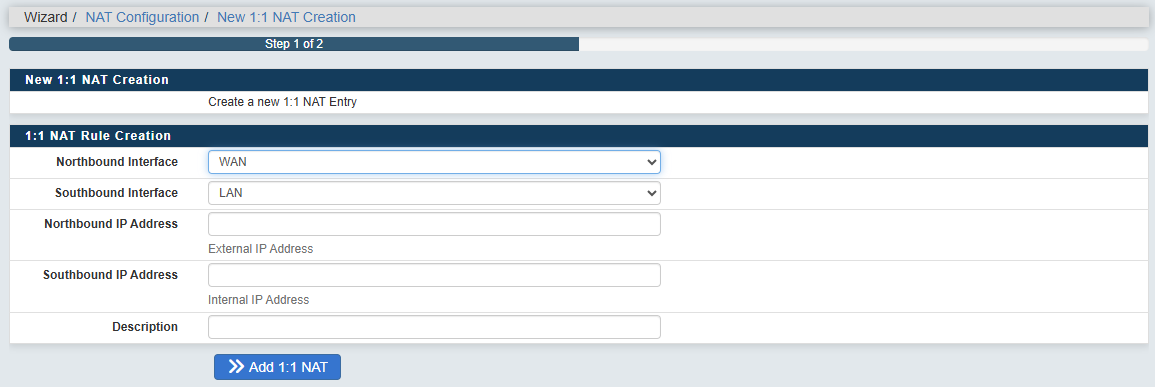

2. Create the 1:1 NAT Mapping

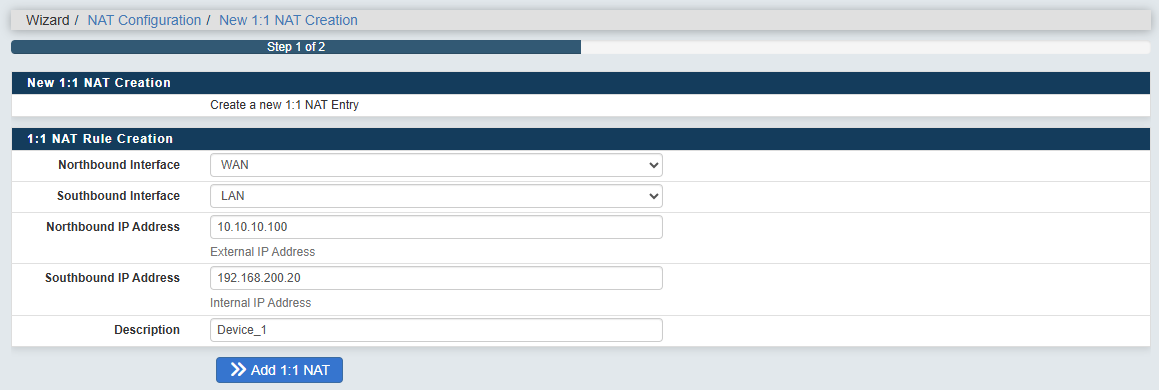

Using the example network, configure the following:

Setting	Value
Northbound Interface	WAN
Southbound Interface	LAN
Northbound IP Address	10.10.10.100
Southbound IP Address	192.168.200.20
Description	Device_1

Northbound Interface

Select:

WAN

The Northbound interface is the external side of the Defender.

This is the network where the translated address will be available.

Southbound Interface

Select:

LAN

The Southbound interface is where the protected device is connected.

If the device is connected through a VLAN instead of the physical LAN interface, select the appropriate VLAN interface.

Northbound IP Address

Enter an unused IP address from the WAN network.

Example:

10.10.10.100

This address represents the LAN device on the WAN network.

Do not use the Defender's own WAN interface address.

In this example:

Defender WAN: 10.10.10.53
NAT address: 10.10.10.100

Southbound IP Address

Enter the actual IP address of the device on the LAN side.

Example:

192.168.200.20

This is the real address of the device behind the Defender.

Description

Enter a useful name for the NAT mapping.

Example:

Device_1

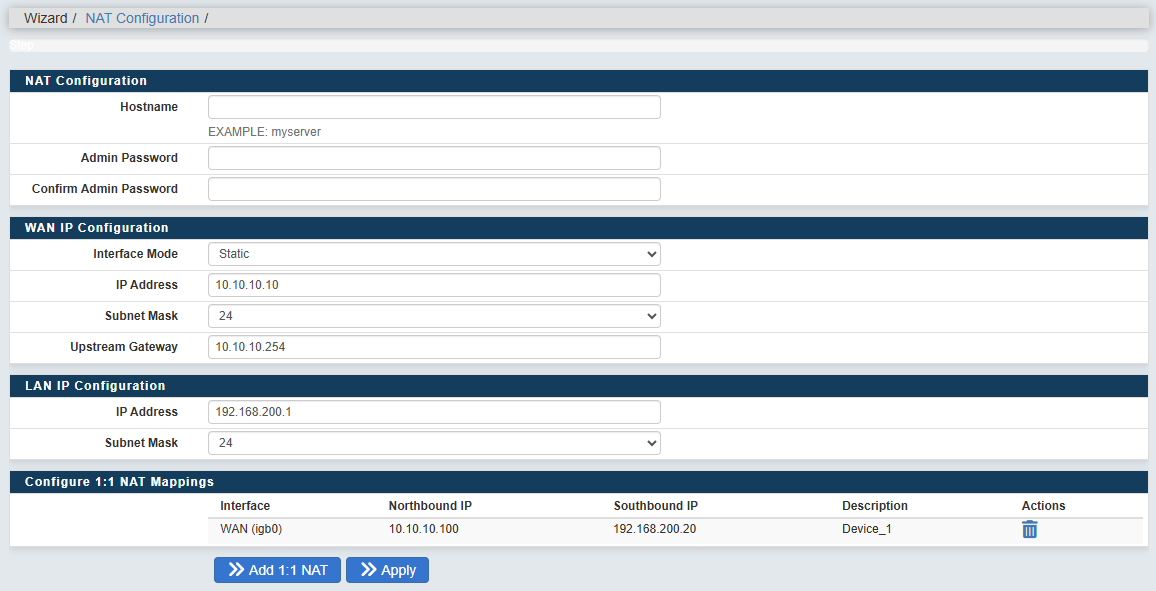

Click:

Add 1:1 NAT

If additional devices require 1:1 NAT, repeat the process using a different Northbound IP address for each device.

When finished, click:

Apply

Then

Finish

3. Result

The completed mapping is:

10.10.10.100 ↔ 192.168.200.20

A device on the WAN side communicates with:

10.10.10.100

The Anybus Defender then translates the traffic and forwards it to:

192.168.200.20

Example:

WAN Device
10.10.10.20
↓
Destination
10.10.10.100
↓
Anybus Defender
↓
1:1 NAT
↓
LAN Device
192.168.200.20

The WAN device therefore does not need to communicate directly with the LAN-side IP address.

4. What the Simple NAT Wizard Changes

The Simple NAT Wizard simplifies the configuration process by creating the required NAT-related configuration automatically.

After applying the wizard, the resulting configuration can be inspected in several locations.

The main areas affected are:

Virtual IPs
1:1 NAT Mapping
LAN Firewall Rules
WAN Firewall Rules

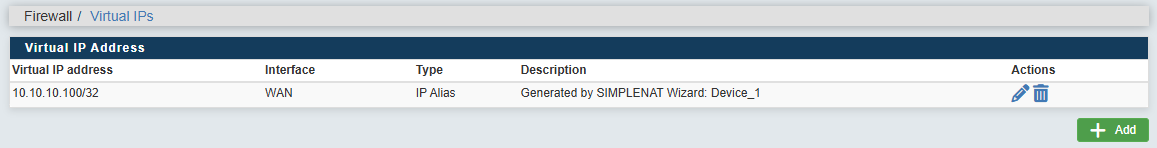

5. Virtual IP

Navigate to:

Firewall → Virtual IPs

The wizard creates a Virtual IP for the WAN-side NAT address.

In this example:

10.10.10.100

The Virtual IP allows the Defender to handle traffic addressed to the translated WAN address.

The resulting configuration corresponds to:

Setting	Value
Type	IP Alias
Interface	WAN
Address	10.10.10.100

The Virtual IP represents the LAN device on the WAN network.

The relationship is:

Virtual IP 10.10.10.100 → LAN Device 192.168.200.20

NOTE: Make sure the Virtual IP you choose is not used by other devices to avoid IP address conflict.

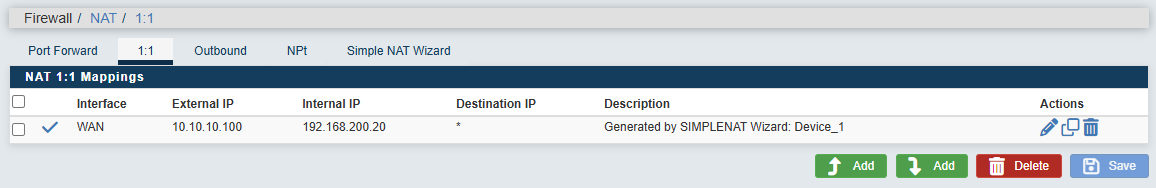

6. 1:1 NAT Mapping

Navigate to:

Firewall → NAT → 1:1

The NAT mapping created by the Simple NAT Wizard can be viewed here.

The entry should correspond to:

Setting	Value
Interface	WAN
External IP	10.10.10.100
Internal IP	192.168.200.20
Description	Generated by SIMPLENAT Wizard: Device_1

The mapping is:

External IP
10.10.10.100

↕

Internal IP
192.168.200.20

NOTE: The 1:1 NAT translates not only the destination address, but also the source address for the return traffic. E.g.

Packets on WAN FROM 10.10.10.1 TO 10.10.10.100 will be translated TO 192.168.200.20

Return traffic FROM 192.168.200.20 to 10.10.10.1 will receive FROM IP 10.10.10.100 on the WAN interface.

7. Firewall Rules

NAT and firewall filtering are separate functions.

The NAT configuration translates IP addresses, while the firewall rules determine whether the traffic is permitted.

The Simple NAT Wizard automatically creates firewall rules associated with the 1:1 NAT configuration.

These rules can be inspected under:

Firewall → Rules

LAN Rules

Navigate to:

Firewall → Rules → LAN

Traffic initiated from the LAN side enters the Defender through the LAN interface.

The traffic path is:

LAN Device → LAN Interface → Anybus Defender → WAN

For the example:

192.168.200.20 → Anybus Defender → translated to 10.10.10.100 → WAN

The LAN firewall rule controls whether the LAN device is permitted to send traffic toward the WAN.

NOTE: This allows traffic from this device to ALL destinations. Recommendation is to tighten to only allow what is specifically needed to be reached.

WAN Rules

Navigate to:

Firewall → Rules → WAN

Traffic initiated from the WAN side enters the Defender through the WAN interface.

The traffic path is:

WAN Device → 10.10.10.100 → Anybus Defender → 192.168.200.20

The WAN firewall rule controls whether the WAN-side device is permitted to access the NATted LAN device.

NOTE: This allows all traffic types to the NATed devices. Recommended is to tighten to only allow what services are required, by means of limiting Destination Port and Protocol (UDP / TCP / ICMP). In addition tighten to only allow from specific source IP addresses that are required to reach this NATed device.
