Anybus Defender – Firewall Rule Configuration Guide

APPLICABLE PRODUCTS

Anybus Defender Series 4000 and up

VERSIONS USED IN THIS ARTICLE

• Anybus Defender 2.5.2-2025111723

How to Add Firewall Rules on the Anybus Defender

This guide explains how to create a basic firewall rule on the Anybus Defender. Firewall rules are used to control which devices and services are allowed to communicate through the Defender. Firewall Rules are created on the interfaces where the traffic comes INTO the firewall. E.g. to enable communication from WAN to LAN, your rule must be on the WAN interface.

Instructions

Anybus Defender – Add Firewall Rule

1. Go to: Firewall → Rules

2. Select the interface where the traffic enters the Defender.

   Example:

   • Traffic from LAN → choose LAN
   • Traffic from VLAN 200 → choose VLAN 200
3. Click Add.
4. Configure the rule:
   • Action: Pass
   • Interface: <leave as interface traffic come into>
   • Address Family: IPv4
   • Protocol: TCP, UDP, ICMP, or Any
   • Source: Device or network that starts the connection
   • Source Port: Usually Any
   • Destination: Device or network being accessed

   • Destination Port Range (From): Select applicable server, example. HTTPS

     NOTE:  When selecting service in From See that the service in To selects the same protocol, otherwise adjust

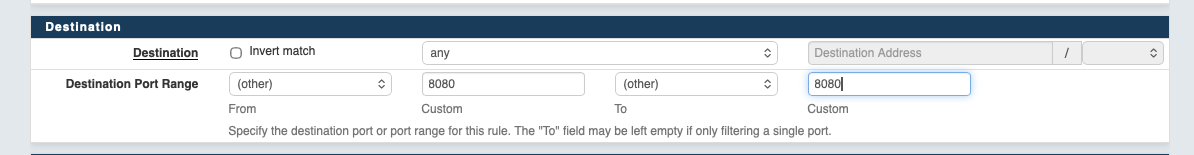

     NOTE 2: When selecting Other specify the port number in Custom (example: 8080) AND make sure the TO field matches - even if it's only ONE port that is allowed to pass)

• Description: Give the rule a clear name

1. Click Save.
2. Click Apply Changes.
3. Make sure the rule is in the correct order. More specific allow rules should normally be placed above broader block rules.

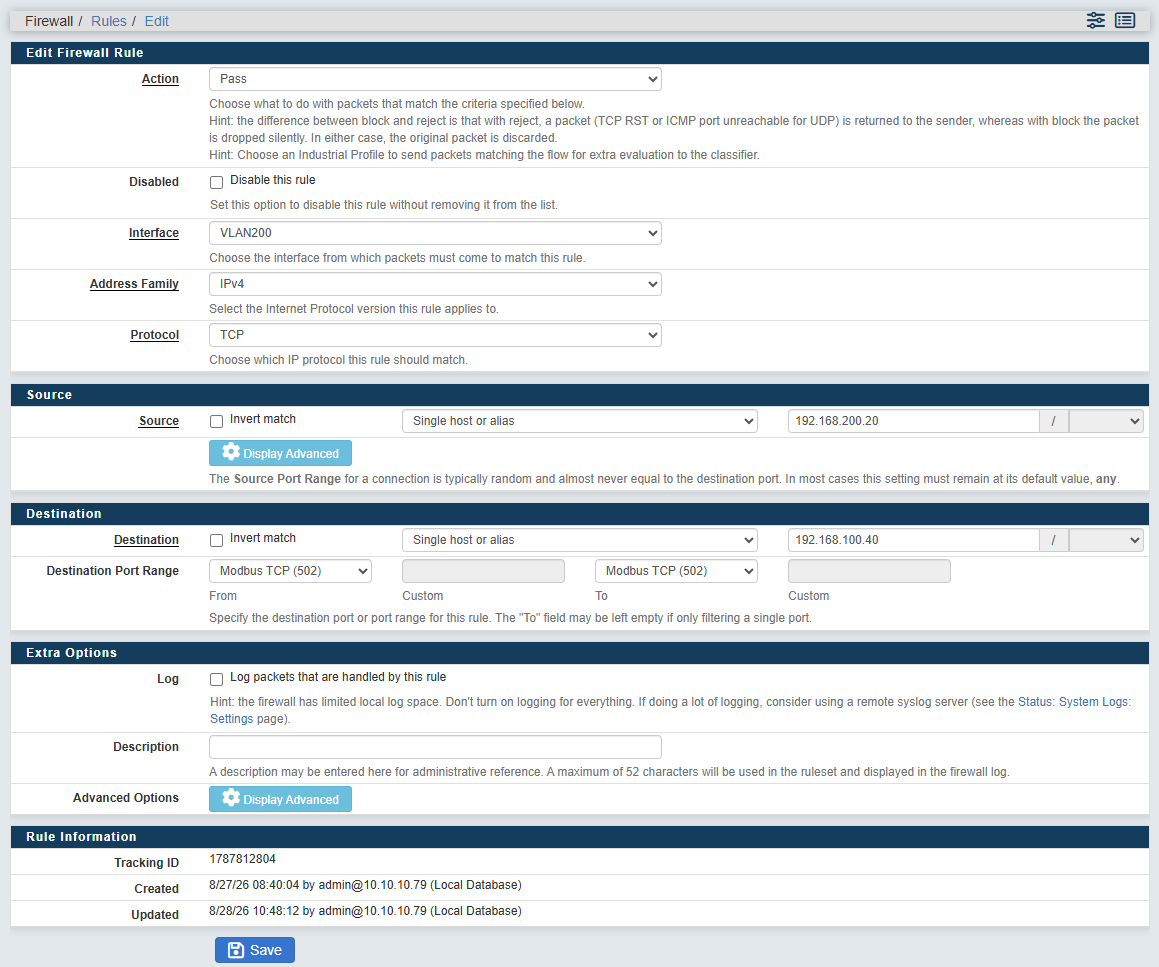

Example – Allow Modbus TCP

HMI:

192.168.200.20

PLC:

192.168.100.40

Rule:

Action:           Pass
Interface :       VLAN200
Protocol:         TCP
Source:           192.168.200.20
Source Port:      Any
Destination:      192.168.100.40
Destination Port: 502
Description:      Allow HMI to PLC Modbus

The rule is placed on the interface where the HMI traffic enters the Defender.

Logging

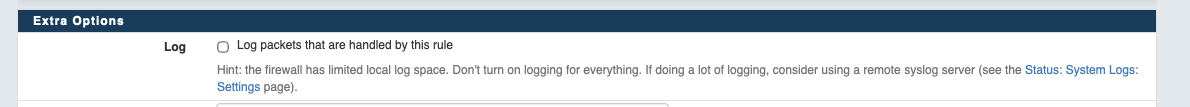

By default traffic that matches rules will not result in a log entry. To enable explicit logging, in the rule you can enable "Log packets that are handled by this rule"

Example of Syslog :

2026-08-31T09:32:19.568488+02:00 Master-Defender-AUTHORIZED-USE-ONLY.localdomain filterlog[58296] 10,,,1000000103,igb0,match,block,in,4,0x0,,1,0,0,none,2,igmp,36,10.10.10.201,224.0.0.1,datalength=12

Easy Rule Creation

In Menu: Status -> System Logs and then in Tab Firewall -> Normal View you can see the logged entries of blocked connection requests. Allowed connections are not logged, unless specifically enabled in the Firewall Rule that matches the traffic

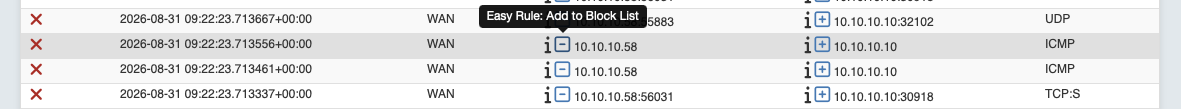

See the Timestamp, interface, source IP and port, destination IP and Port and Protocol detected. Mouseover the "-" in from of the source reveals an "Easy Rule: Add to Block List". This will create an explicit block for this originating IP in Firewall Rules. Traffic is already denied by default, but creating this Block Rule will remove the log entries.

In the same way clicking "+" in front of the Destination IP and port will create a rule to Allow traffic to this IP and Port.

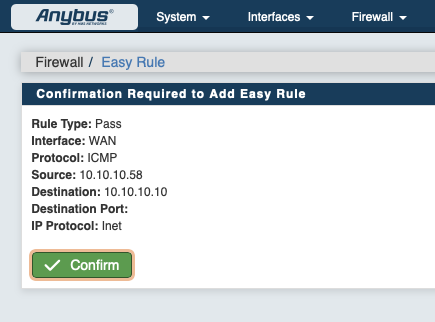

The "+" Create Easy Rule shows a template of the rule that will be created:

When pressing Confirm a rule will be created and active direct.

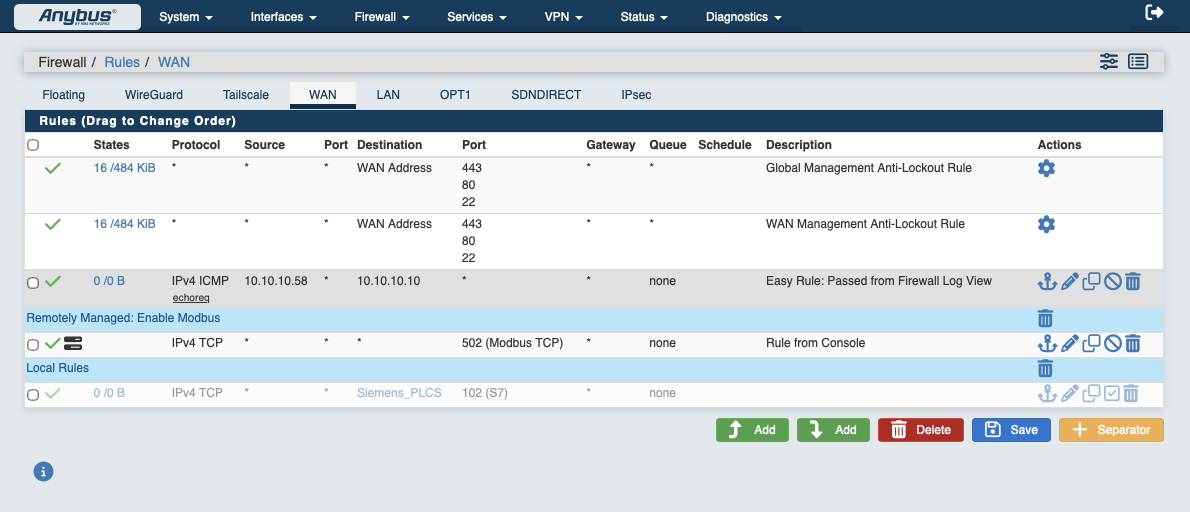

Under Firewall -> Rules  you will find the new rules lowest in the list with clearly marked comments.

The rules can be moved with Drag & Drop.

After dropping the rule in desired place, press SAVE and Apply Changes.
