APPLICABLE PRODUCTS
FlexEdge, Graphite HMI’s
PRE-REQUISITES
Crimson 3.2
Web Server Access on the device. Crimson 3.2 HMI Reset and System Web Server – HMS Support Portal
IN THIS ARTICLE
We will outline the details of how to complete a diagnostics core dump
Item 1
Step 1

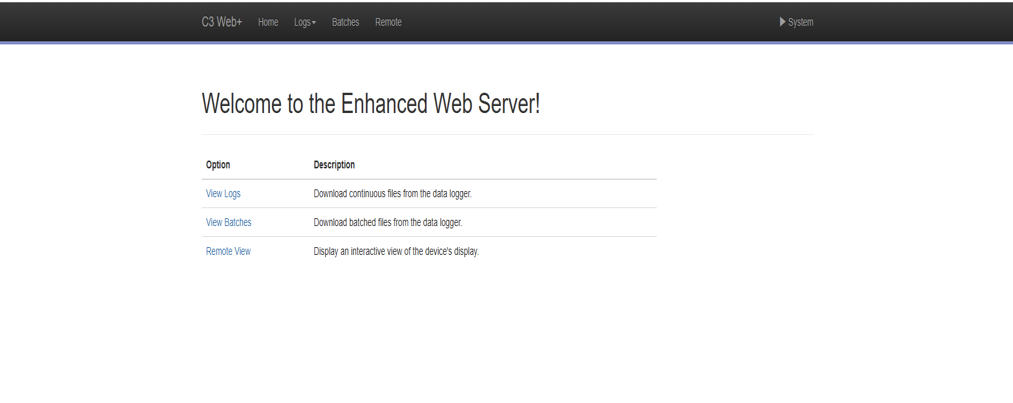

You need to login to the device's web server.
Step 2

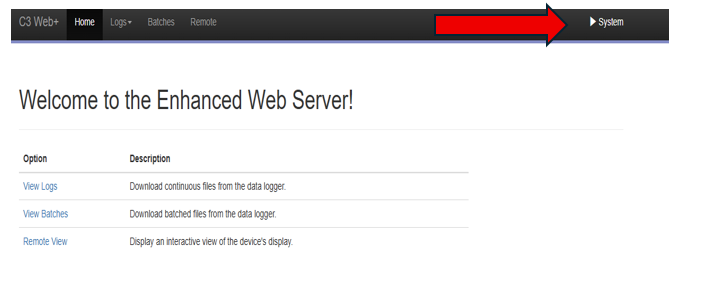

Click the word “System” in the top right corner
Step 3

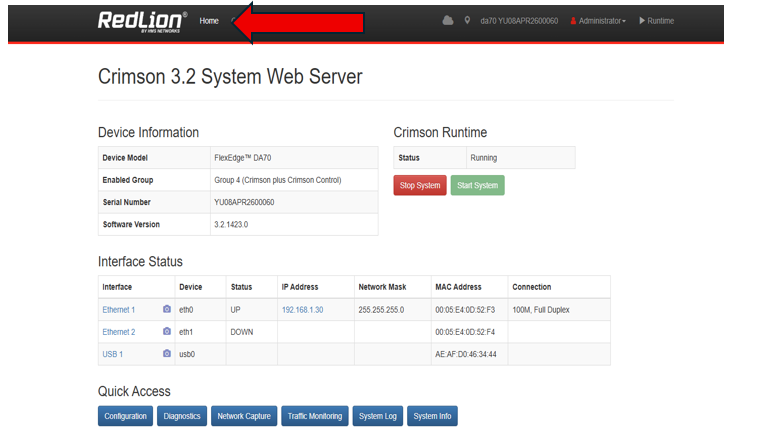

You will be asked to login. Once logged in click the word “Home”.
Step 4

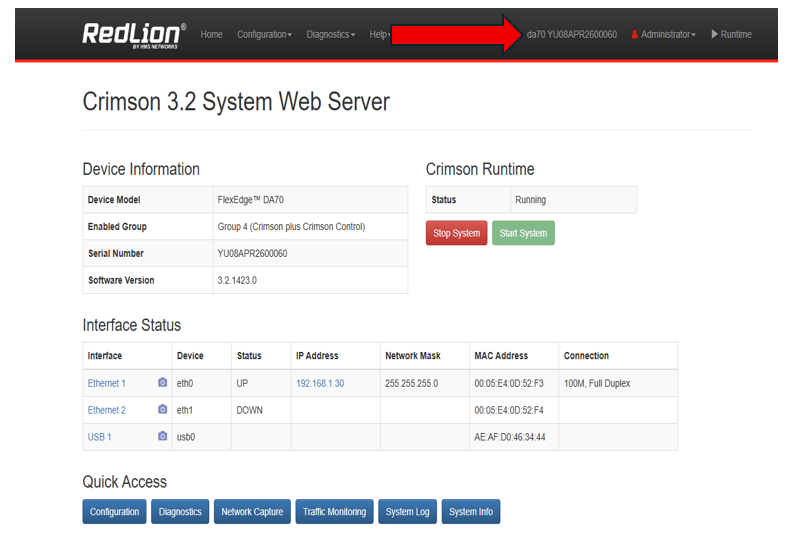

Then click the “name” of your device in the top right corner.

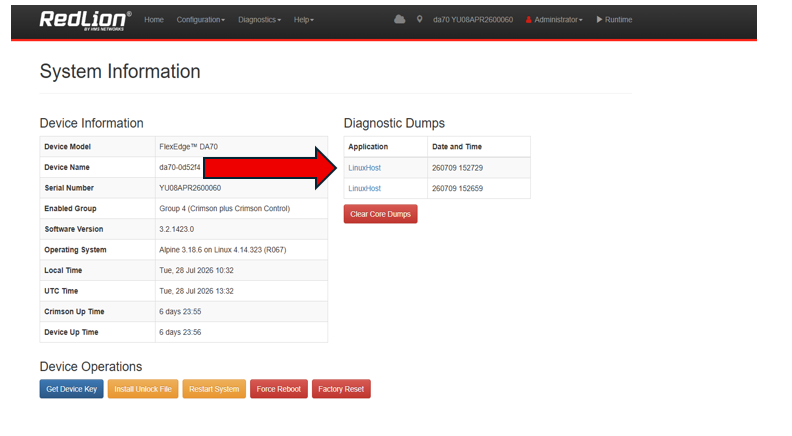

You should see a screen like this one. It shows the core dump under the heading Diagnostic Dumps.
Step 5
Please download each core dump. Click the name “LinuxHost” next to each date to start the download.
Need Further assistance? Submit a support ticket here.
https://support.hms-networks.com/
