APPLICABLE PRODUCTS
FlexEdge Devices
Graphite, CR HMI’s
PRE-REQUISITES
Crimson file using arrays
IN THIS ARTICLE
Article will outline the details on how to use array elements for Gateway Blocks

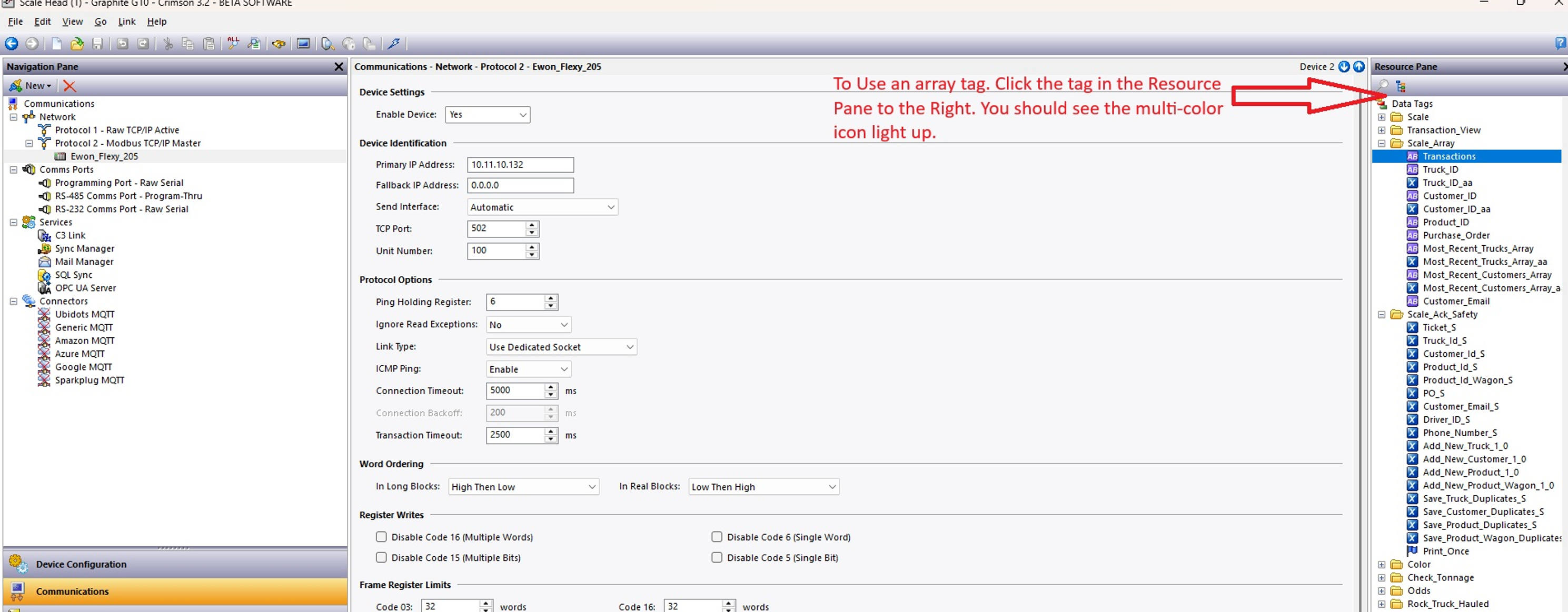

Step 1 – Toggle Array Enable

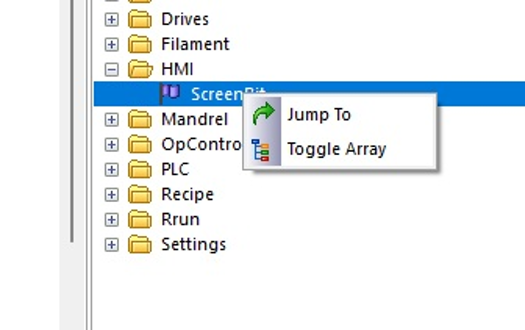

Step 2- Right Click Array can also show the “Toggle Array” menu. Click “Toggle Array” to expand array elements.

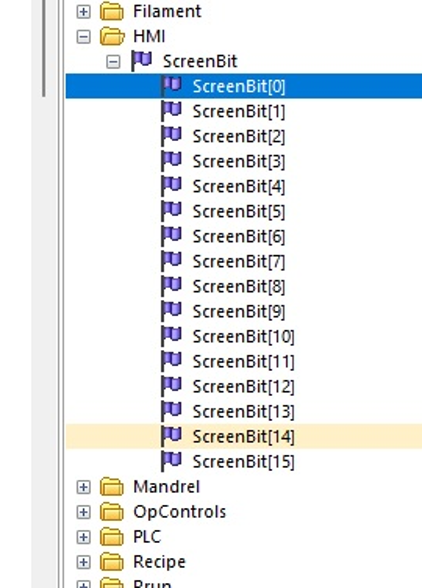

Step 3- Choose the array element you want to use in the Gateway Block

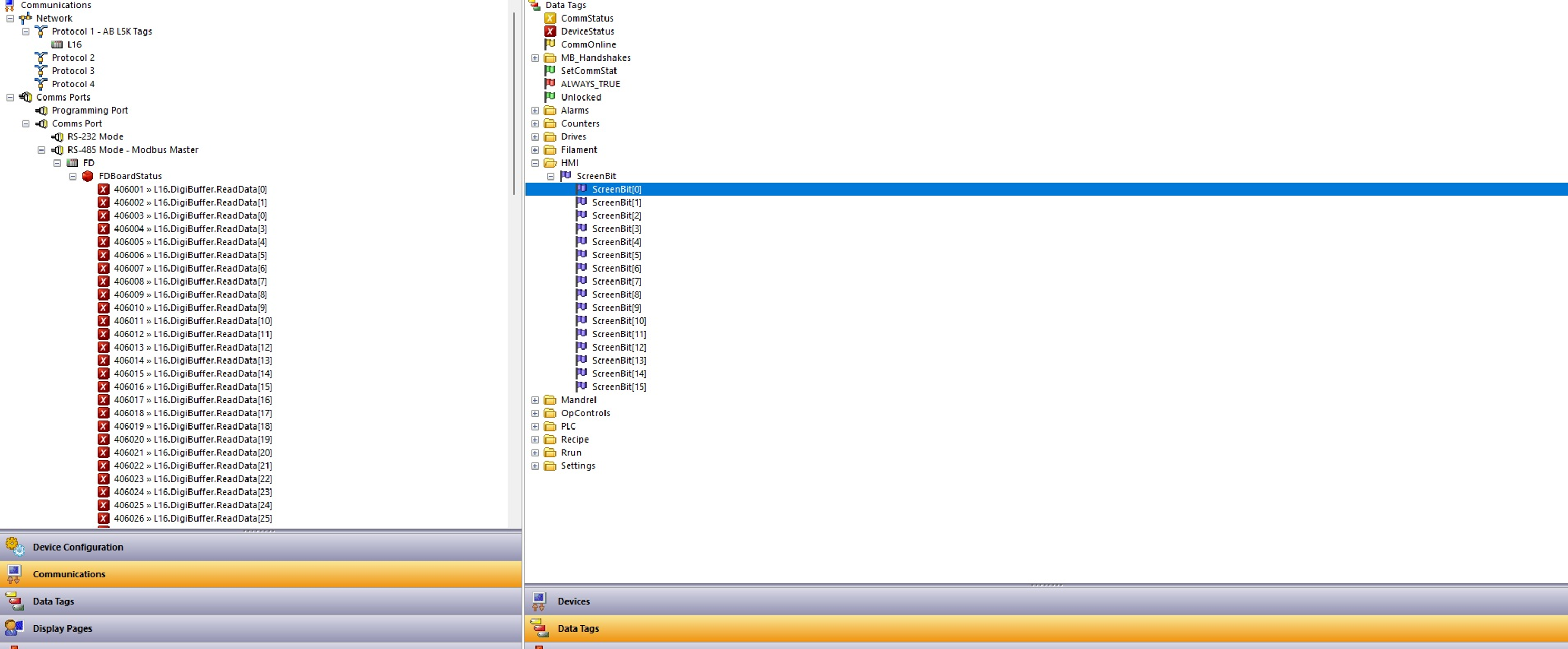

Step 4- Click-Hold, Drag and Drop the array element tag on the gateway block you want to use.
