This article will discuss the replacement option part numbers for the discontinued Apollo intelligent meter series.
APPLICABLE PRODUCTS
- IMD1 and IMD2 series meters
- IMH series meters
- IMI series meters
- IMT series meters
PRE-REQUISITES
One of the above Apollo intelligent series panel meters
IN THIS ARTICLE
This article will discuss the current replacement PAX panel meter series part numbers and option cards based on the old meter model number. Model numbers are normally found on a small gray decal on the one case side. PAX series model numbers are found on the top rear case decal.

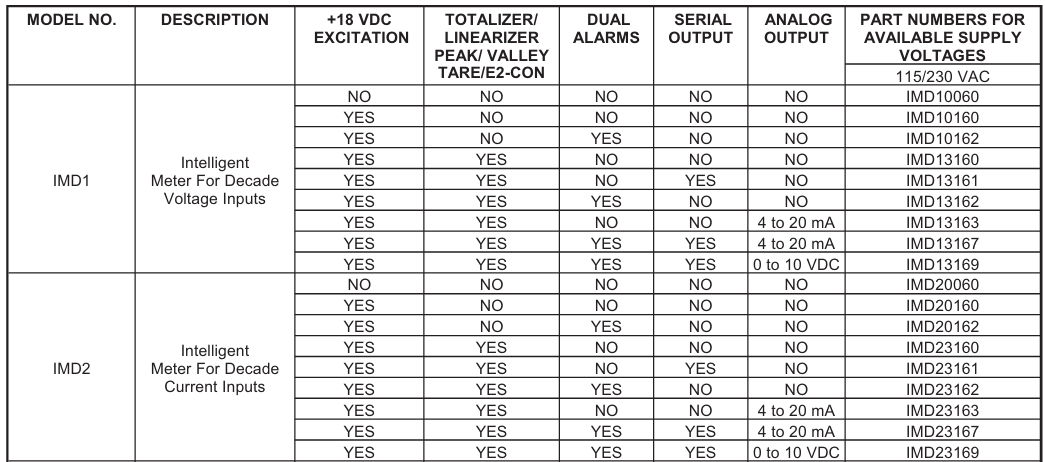

IMD series part numbers
IMD1
- IMD10060, IMD10160, and IMD13160 are replaced by the PAXD0000 unit.
- IMD10162 is replaced by the PAXD0000 unit with relay card PAXCDS10
- IMD13161 is replaced by the PAXD0000 unit and serial card PAXCDC10 (RS-485)
- IMD13162 is replaced by the PAXD0000 unit with relay card PAXCDS10
- IMD13163 is replaced by the PAXD0000 unit and analog output card PAXCDL10
- IMD13167 and IMD13169 are replaced by the PAXD0000 unit and PAXCDS10, PAXCDL10, and PAXCDC10 option cards
IMD2
- IMD20060, IMD20160, and IMD23160 are replaced by the PAXD0000 unit.
- IMD20162 is replaced by the PAXD0000 unit with relay card PAXCDS10
- IMD23161 is replaced by the PAXD0000 unit and serial card PAXCDC10 (RS-485)
- IMD23162 is replaced by the PAXD0000 unit with relay card PAXCDS10
- IMD23163 is replaced by the PAXD0000 unit and analog output card PAXCDL10
- IMD23167 and IMD23169 are replaced by the PAXD0000 unit and PAXCDS10, PAXCDL10, and PAXCDC10 option cards

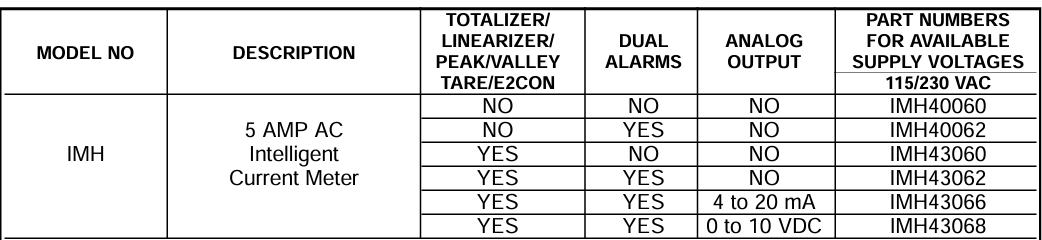

IMH series part numbers
- IMH40060 and IMH43060 our replaced by the PAXH0000 panel meter
- IMH40062 and IMH43062 our replaced by the PAXH0000 meter and dual relay card PAXCDS10
- IMH43066 and IMH43068 our replaced by the PAXH0000 meter PAXCDS10 and PAXCDL10 option cards.

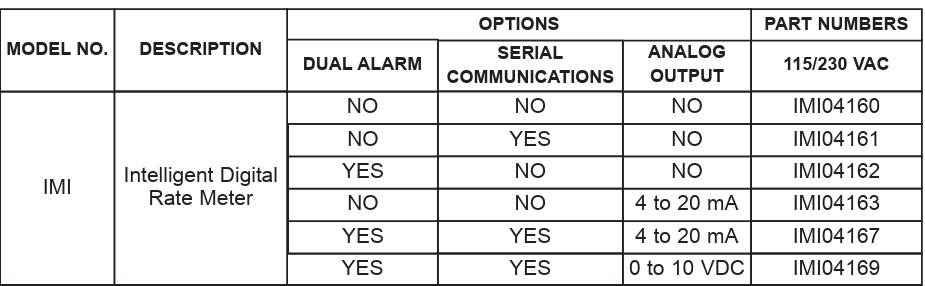

IMI series part numbers
- IMI04160 is replace by PAXI0020
- IMI04161 is replaced by PAXI0020 and PAXCDC10 (RS-485 card)
- IMI04162 is replaced by PAXI0020 and PAXCDS10 dual relay option card
- IMI04163 is replaced by PAXI0020 and PAXCDL10 analog output card.
- IMI04167 and IMI04169 are replaced by PAXI0020, PAXCDS10, and PAXCDL10 option cards.

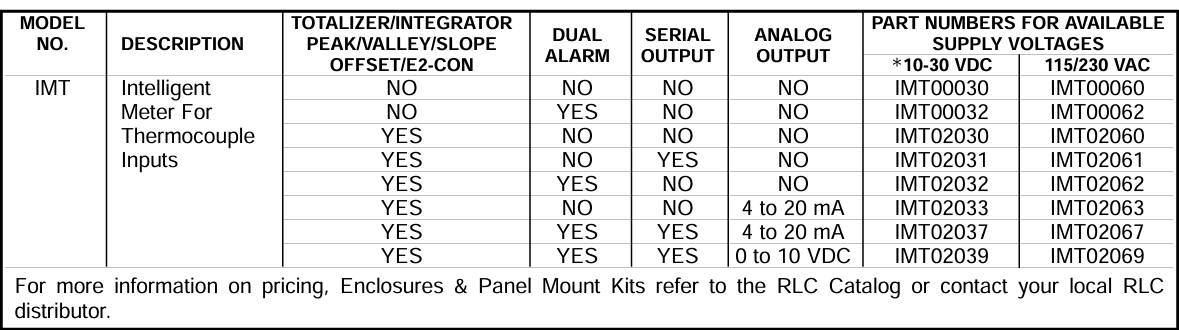

IMT series part numbers
Please note
IMT model numbers with a 3x suffix in the part number are replaced by PAXT0010. any required option cards will be the same as the 6x suffix models
- IMT00060 and IMT02060 are replaced by PAXT0000 panel meter
- IMT00062 and IMT02062 are replaced by PAXT0000 and PAXCDS10 dual relay option card.
- IMT02061 is replaced by PAXT0000 and PAXCDC10 (RS-485) option card.
- IMT02063 is replaced by PAXT0000 and PAXCDL10 analog output option card.
- IMT02067 and IMT02069 are replaced by PAXT0000, PAXCDS10, and PAXCDC10, and PAXCDL10 option cards.
ADDITIONAL INFO
Link to IMD1 and IMD2 manuals IMD1 and IMD2 product manual
Link to IMH manual IMH product manual
Link to IMI manual IMI product manual
Link to IMT manual IMT product manual
Link to PAX analog input product manual PAX analog input product manual
