Compatible Devices
EZ Automation EZPLC [g3-ez | Word]
Verified Device
EZPLC-A-32E [g3-ez | Word]
Accessible Data
| **Prefix** | **Description** |
|---|---|
| I | I Discretes |
| O | O Discretes |
| S | S Discretes |
| IR | IR Registers |
| OR | OR Registers |
| R | R Registers |
| SD | SD Discretes |
| SR | SR Registers |
| XR | XR Registers |
| #R | #R Registers |
| XS | XS Registers |
| #S | #S Registers |
Cable Information

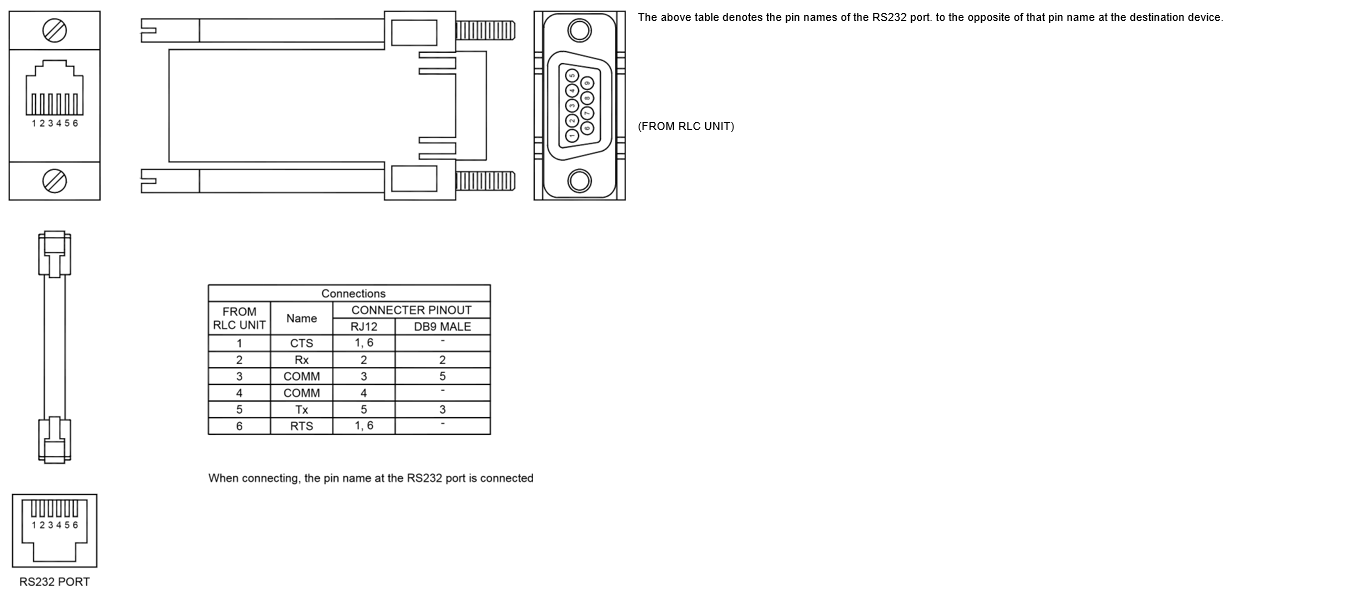

Communication Cable:
- G3 / Modular Controller / Data Station Plus to generic RS232
- Part Number: CBLGEN01 – 10 ft [g3-ez | Word]
Summary
This driver provides access to EZPLC memory using a mix of discrete and register-based addressing:
Key Concepts
-
Discrete I/O:
- I, O, S, SD
-
Register Types:
- IR, OR, R, SR, XR, XS
- Extended/special registers: #R, #S
Practical Takeaways
- Straightforward memory model similar to PLC-style addressing
- Supports both bit-level (discrete) and word-level (register) data
- Extended register sets (#R, #S) give access to additional controller memory
👉 In practice:
- Use I/O prefixes (I, O) for field signals
- Use R / IR / OR for logic and data storage
- Use extended registers (#R / #S) when working with advanced or expanded memory areas
