1. Communication Cable – G3 / Modular Controller / Data Station Plus to Siemens via CP525 Communication Card
cblsie08_1.docx
Cable Details
- Cable Part Number: CBLSIE08
- Length: 10 feet
- Application: G3 / Modular Controller / Data Station Plus to Siemens via CP525 Communication Card
Connector Information

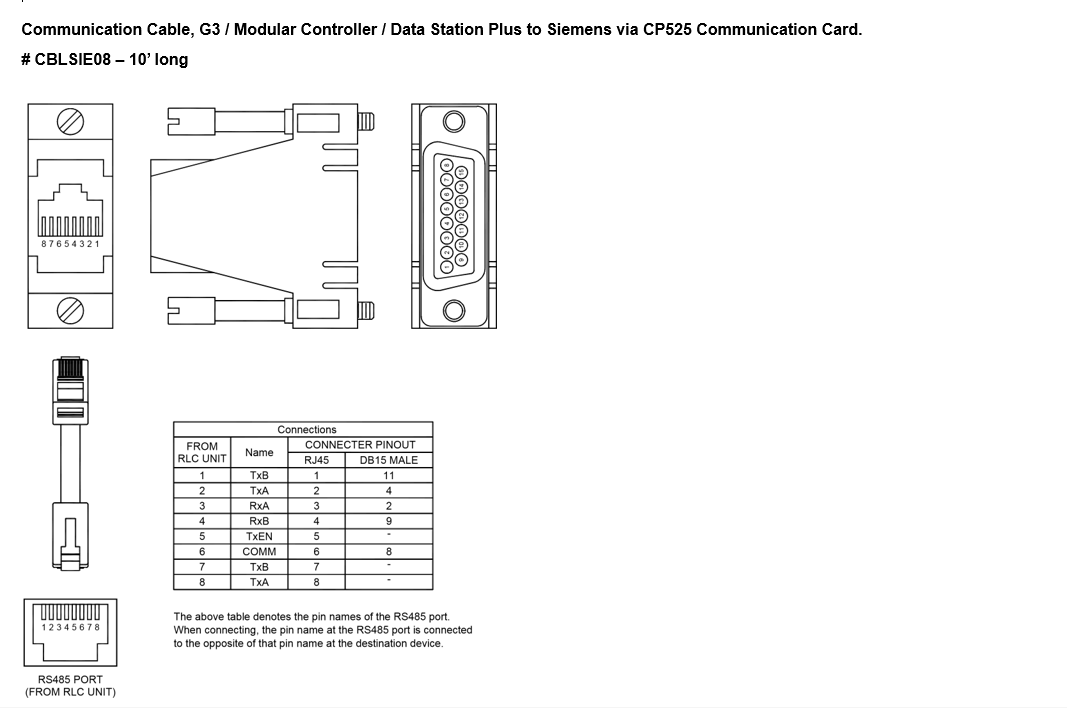

This cable is used to connect an RLC device to Siemens controllers equipped with a CP525 communication card.
Reference Images
