This article explains how to configure and use the Siemens S7 Plus Master Driver in Crimson 3.2. It covers importing Siemens TIA Portal configuration files, configuring device and protocol settings, creating and mapping symbolic data tags, handling compound data types, and runtime configuration using DevCtrl functions. This article is intended to help users reliably connect Crimson-based devices to Siemens S7 PLCs using the newer S7 Plus Master Driver.

APPLICABLE PRODUCTS

Crimson® 3.2 software
Devices running Crimson 3.2 with Ethernet connectivity
Siemens S7 PLCs (e.g., S7-1200, S7-300/400) configured in TIA Portal

PRE-REQUISITES

Access to Siemens TIA Portal (V16 or compatible)
Ability to export PLC configuration files via the Version Control Interface
Network connectivity between the Crimson device and the Siemens S7 PLC
Administrator or configuration access to the Crimson database

IN THIS ARTICLE

Driver Overview and Capabilities

The Siemens S7 Plus Master Driver supersedes legacy Siemens S7 drivers by providing direct access to symbolic tags imported from TIA Portal. Key capabilities include:

Support for symbolic tags and absolute addressing
Support for system and user-defined data types
Support for 3-dimensional arrays (with some limitations)
Support for String and LReal (64‑bit real) data types
Data block numbers from 1 to 59999 and byte offsets from 0 to 65535
Import of PLC configuration files in XML or ZIP format

Device and Protocol Configuration

Device Configuration

Add a Siemens S7 Plus Master device in Crimson.
Import the Siemens configuration file (XML or ZIP) exported from TIA Portal.
Use the Reload Import File option if PLC changes are made after import.

Device Identification

Configure the Primary IP Address of the PLC.
Optionally configure a Fallback IP Address for redundant communication. Set to 0.0.0.0 to disable fallback.

Connection Options

Configure TSAP settings if required by the PLC configuration.
Specify primary and fallback Server and Client TSAP values (without the '.' character).

Protocol Options

Link Type: Use a shared or dedicated socket (maximum four dedicated sockets supported).
ICMP Ping: Enables faster detection of offline devices if supported by the PLC.
Connection Timeout: Time allowed to establish a TCP/IP connection.
Transaction Timeout: Time allowed for PLC responses.
Connection Backoff: Delay before reconnecting to recently disconnected devices.

Exporting Configuration from TIA Portal

Configure Export File Format

In TIA Portal, navigate to Options > Settings > Version Control Interface > Export.
Ensure XML is selected for Data Blocks, PLC Data Types, and PLC Tag Tables.

Data Block Settings

Ensure Optimized Block Access is unchecked for all Data Blocks. This allows Crimson to calculate symbolic offsets correctly.

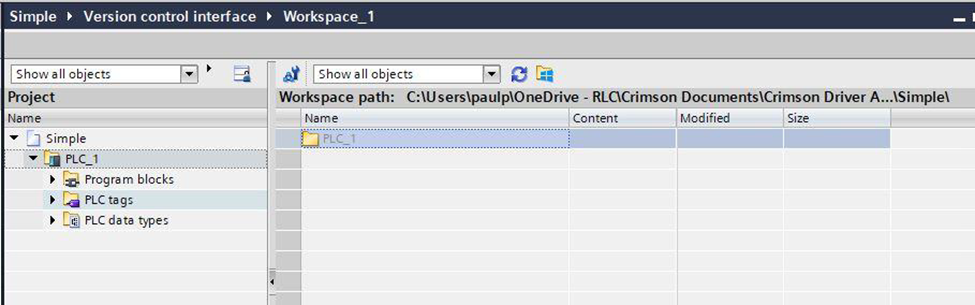

Configuring the Version Control Interface

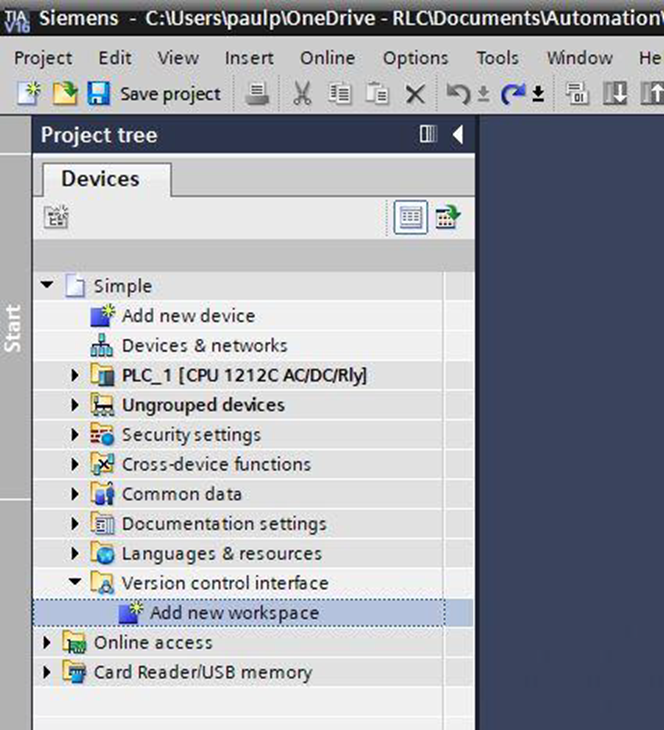

Open the Version Control Interface in the device tree.

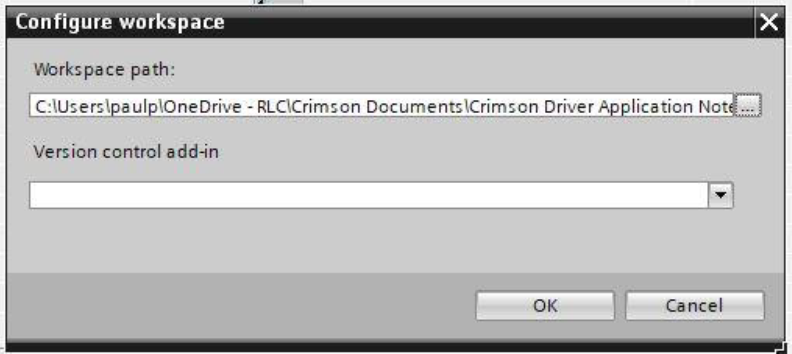

2. Create a new Workspace and configure its local path.

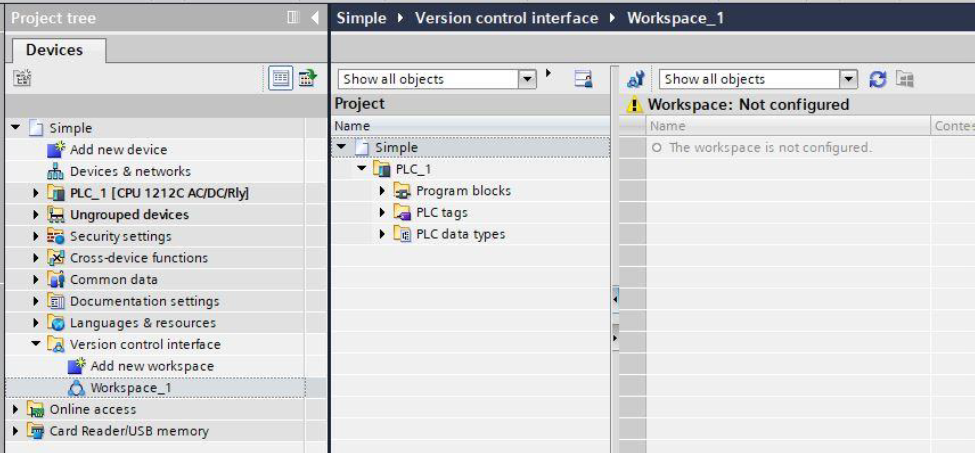

3. Drag required PLC items (Data Blocks, Tag Tables, Data Types) into the Workspace.

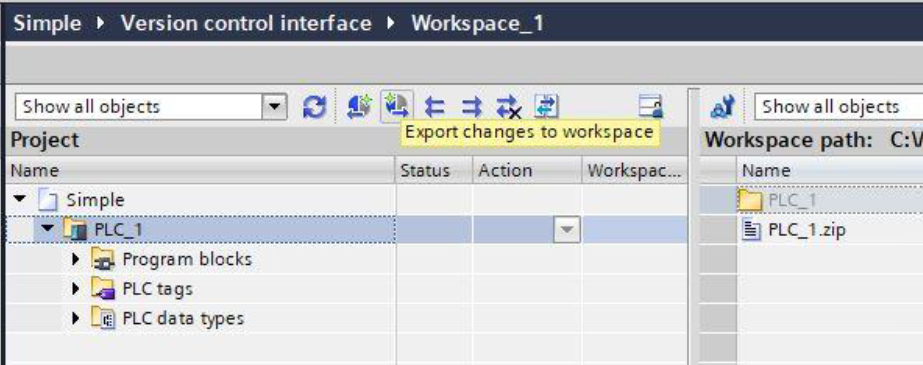

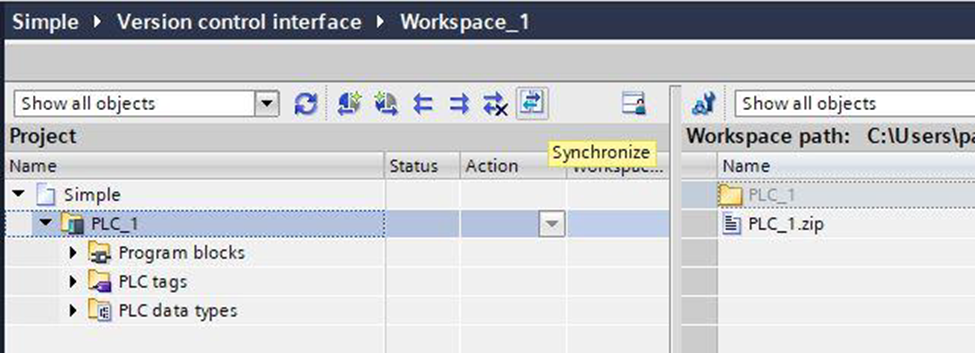

4. Export and synchronize changes regularly.

5. Zip the Workspace folder for import into Crimson.

Important Note: Avoid Data Block or Tag Table names beginning with %.

Creating and Mapping Data Tags

Creating Data Tags

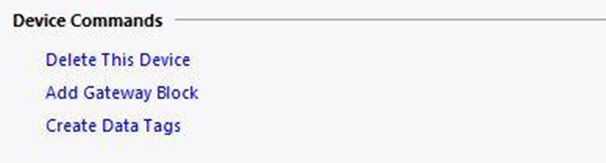

Click Create Data Tags in the driver configuration in Crimson.

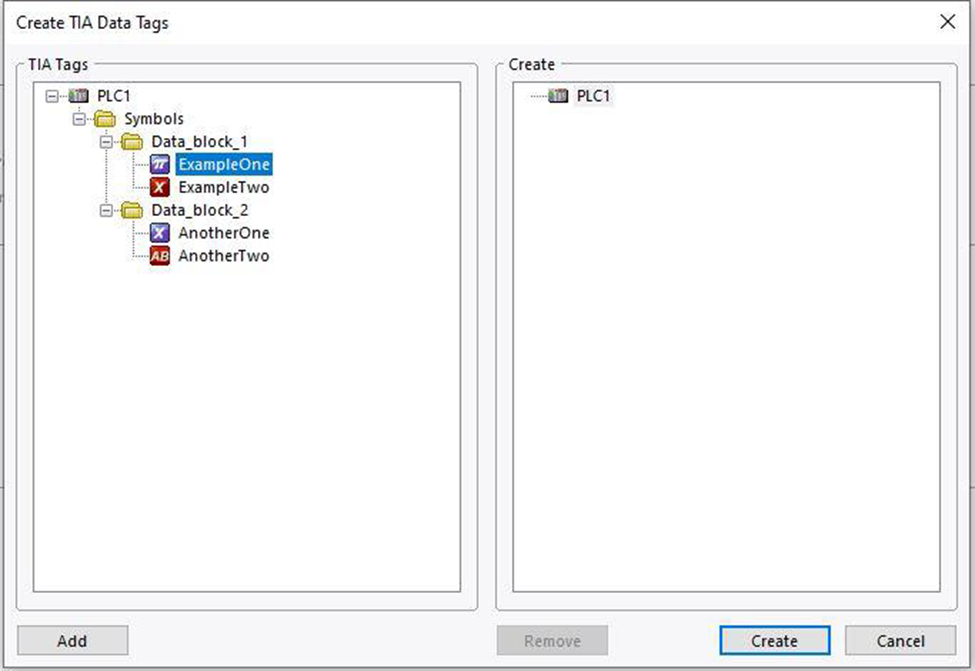

2. Select only the required symbolic tags to minimize communication load.

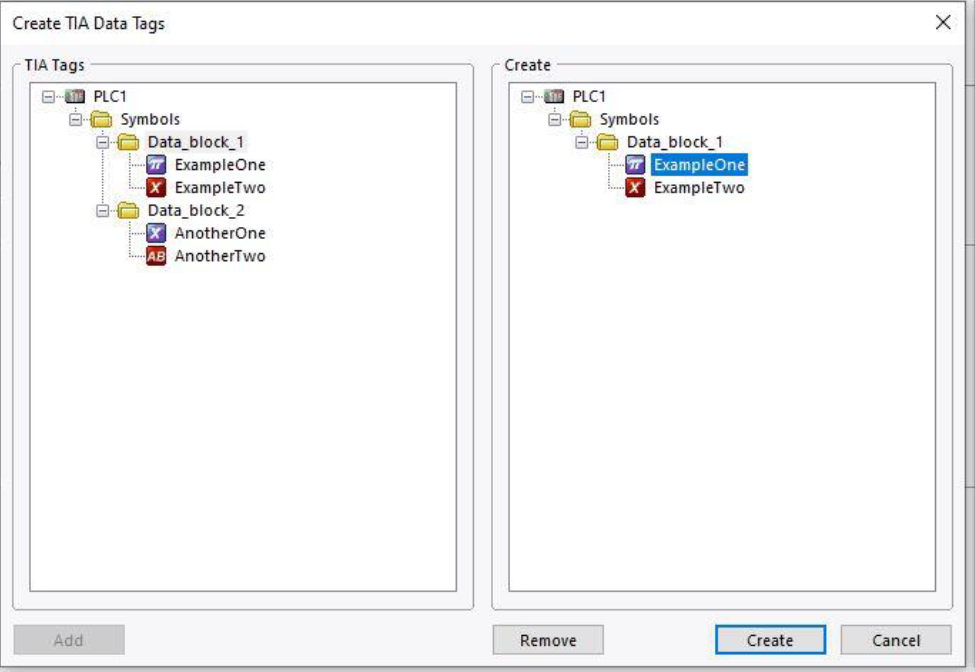

3. Add selected tags to the Create pane and click Create.

Unsupported or conflicting tags will be copied to the Windows clipboard for review.

Mapping Data Tags

Use the Full Address Selection dialog to map complete symbolic tags or absolute addresses.
Use the Partial Address Selection dialog to map array elements or partial addresses.

Handling Compound Data Types

System and User-Defined Types

The driver supports a wide range of Siemens system data types and user-defined types.
All relevant PLC Data Type files must be included in the exported Workspace.

3-Dimensional Arrays

Supported for atomic and compound types.
Arrays of String, Bool, and LReal are not supported.

String Data Type

Implemented as a compound type with maximum length, actual length, and character data stored sequentially.
The driver automatically manages length values during read/write operations.

LReal Data Type

Crimson does not natively support 64‑bit floats.
The driver creates associated tags and uses User Functions to convert between single and double precision values using RealToR64(..).

Runtime Configuration with DevCtrl

The driver supports runtime configuration via the DevCtrl(..) user function. Refer to Crimson 3.2 Reference Guide for general usage information.

Common examples include:

Set Primary IP Address: DevCtrl(2, 1, "192.168.1.1")
Set Fallback IP Address: DevCtrl(2, 5, "192.168.1.2")
Get Primary IP Address: DevCtrl(2, 4, "")
Toggle Primary and Fallback IPs: DevCtrl(2, 8, "")

Upgrading from Legacy Siemens S7 Drivers

Existing Crimson databases using legacy Siemens S7 drivers can typically be upgraded by:

Selecting the Siemens S7 Plus Master Driver on the appropriate port.
Allowing Crimson to reapply existing communication mappings.
Resolving any inherited mapping errors as needed.

Note: Legacy .s7db files are not supported by the S7 Plus Master Driver.

ADDITIONAL INFO

Developed and validated using Siemens TIA Portal V16 and S7‑1200 PLCs
Refer to the Crimson 3.2 Reference Guide for detailed User Function documentation
