Industrial Automation Tech Note 48 - TNIA48
Abstract:
This document describes configuring communications between an approved Red Lion Controls
(RLC) product and an Emerson Remote Operations Controller (ROC), using serial and Ethernet
communications.
Products:
CR1000 Human Machine Interface (HMI), CR3000 HMI, Data Acquisition (DA10, DA30), Data Station Plus (DSP), G3 HMI, G3 Kadet HMI, Graphite® Controller, Graphite HMIs, Modular Controller, and ProducTVity Station™ (PTV)
Use Case: Communicating with a ROC
This document describes the configuration steps/settings needed to properly configure
communications between an approved RLC product and an Emerson ROC, using serial and
Ethernet communications.
Required Software:
Crimson® 3.0 or 3.1
Required Firmware:
Crimson 3.0 build 693 or higher
Crimson 3.1 all builds
Introduction
Approved RLC products previously detailed in this document can be configured to communicate with Emerson ROCs using either serial communications or Ethernet communications. This document describes the steps that must be followed for both communications methods, including the serial and Ethernet configuration of the ROC and Red Lion device, and creating and mapping Crimson tags to the ROC device.
Serial Configuration
Two serial configuration options can be used to configure an approved RLC device to communicate with an Emerson ROC: ROCLINK serial configuration and Crimson serial configuration. Both options are described in the remainder of this section.
ROCLINK Serial Configuration
Perform the following steps to configure an RLC device to communicate with an Emerson ROC using ROCLINK serial configuration:

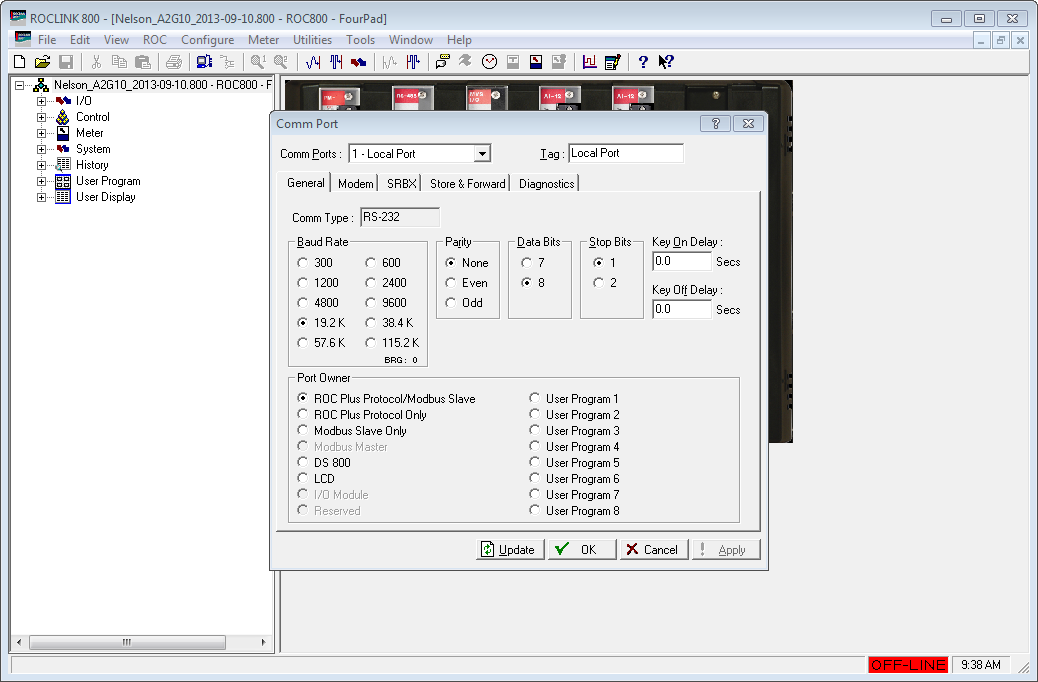

1. Referring to Figure 1, go to the menu bar and click ROC – Comm Ports.
2. Select the port to configure from the options provided in the Comm Port popup; 1 - Local Port in this example.
3. Click the General tab.
4. Configure the Baud Rate, Parity, Data Bits, and Stop Bits parameters, as appropriate for your configuration.
5. Set the Port Owner parameter to an option that includes ROC Plus Protocol.
Figure 1.
6. Referring to Figure 2, click the SRBX tab.
7. Configure the Address and Group parameters in the SRBX Host section, as appropriate.
Figure 2.
8. Click OK.
Crimson Serial Configuration
Perform the following steps to configure an RLC device to communicate with an Emerson ROC using Crimson serial configuration:

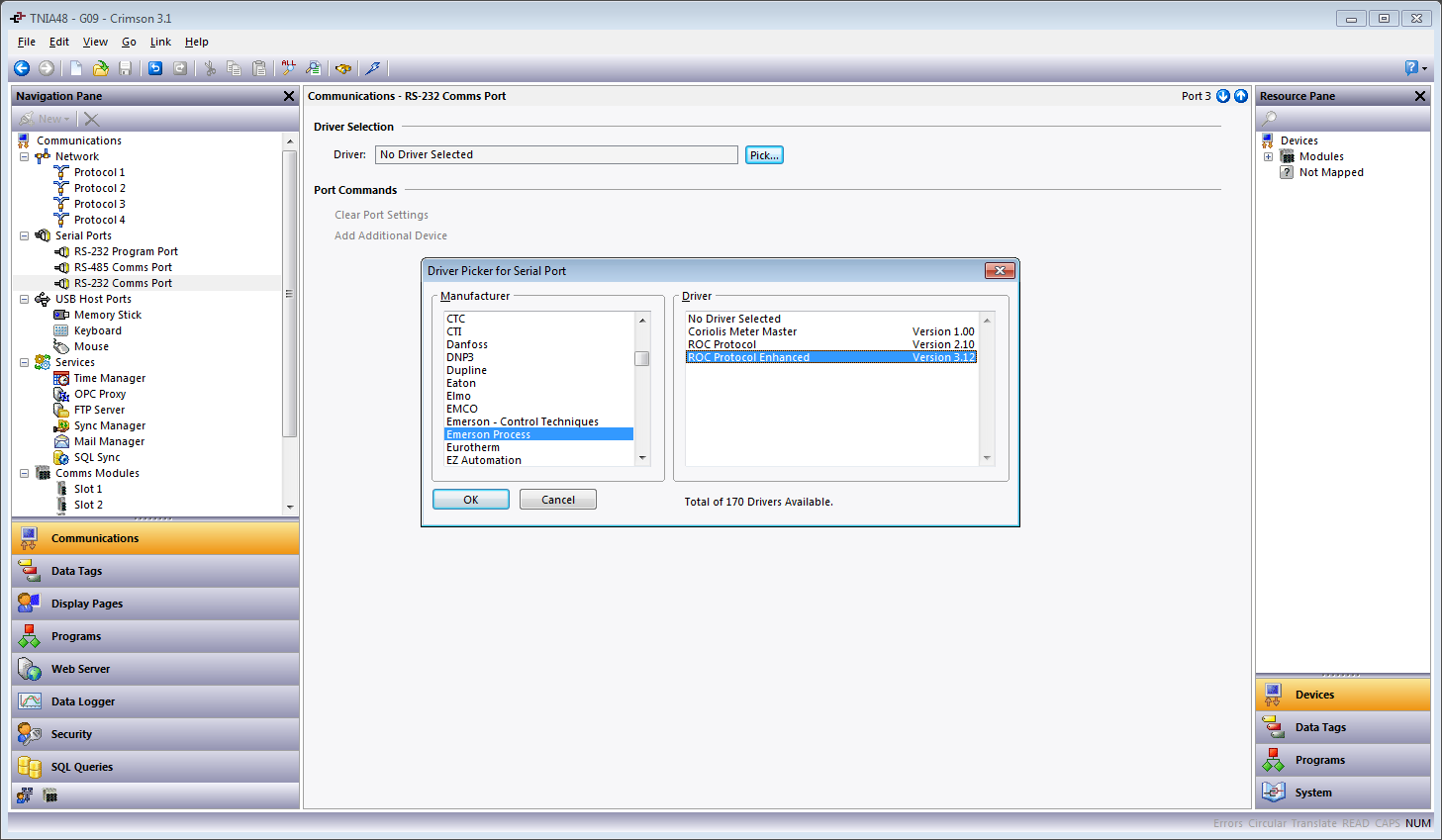

1. Referring to Figure 3, navigate to the Communications section.
2. Click on the serial port to be configured; RS-232 Comms Port in this example. The Communications - RS232 Comms Port window popup appears.
3. Click Pick next to the Driver Selection parameter; the Driver Picker for Serial Port popup appears.
4. Under the Manufacturer heading, select Emerson Process.
5. Under the Driver heading, select ROC Protocol Enhanced.
Figure 3.
6. Click OK.

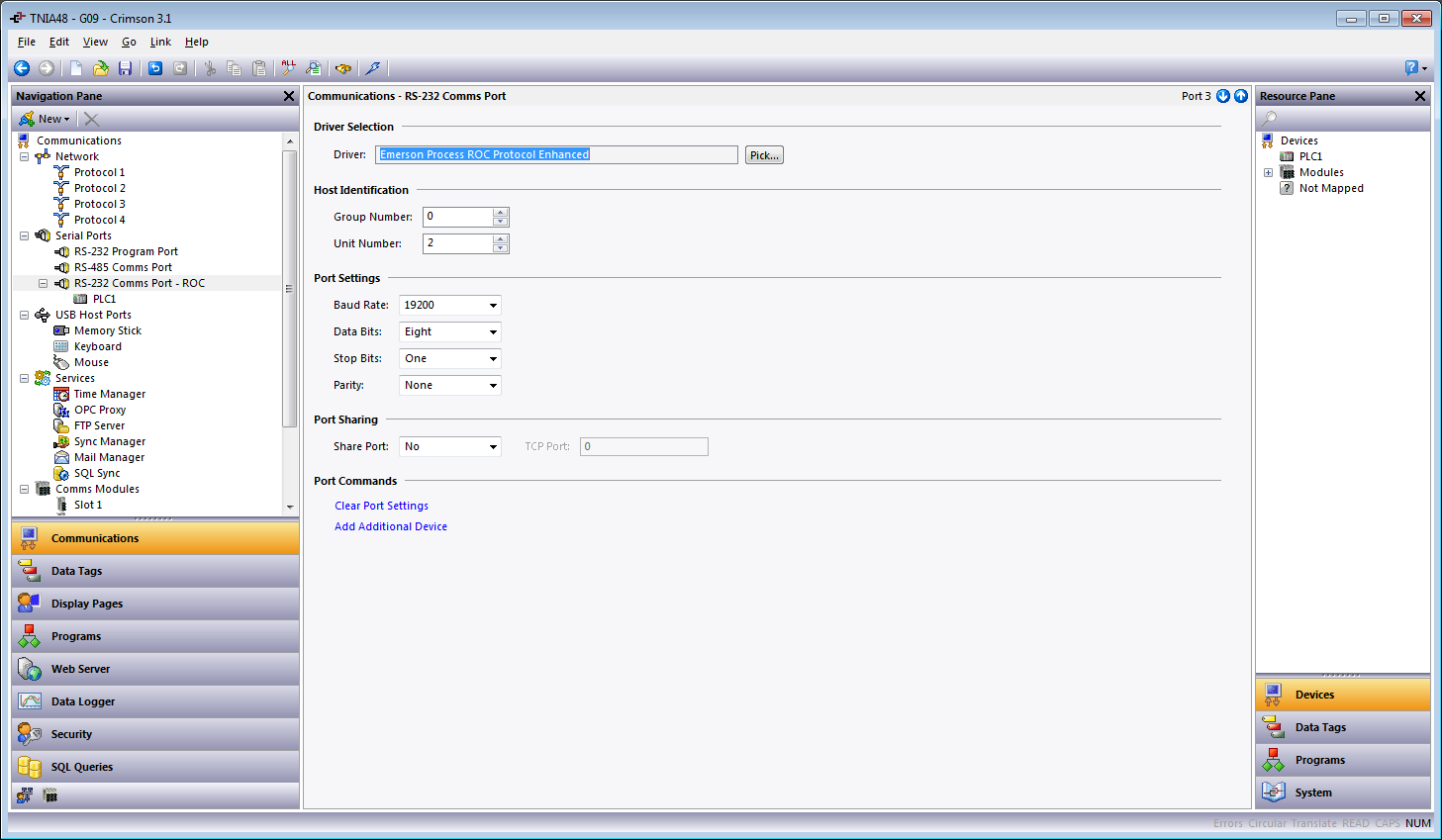

7. Referring to Figure 4, configure the Host Identification section with the Group Number and Unit Number parameters used by the RLC device.
8. Configure the Port Settings to match the ROC’s port settings.
Figure 4.

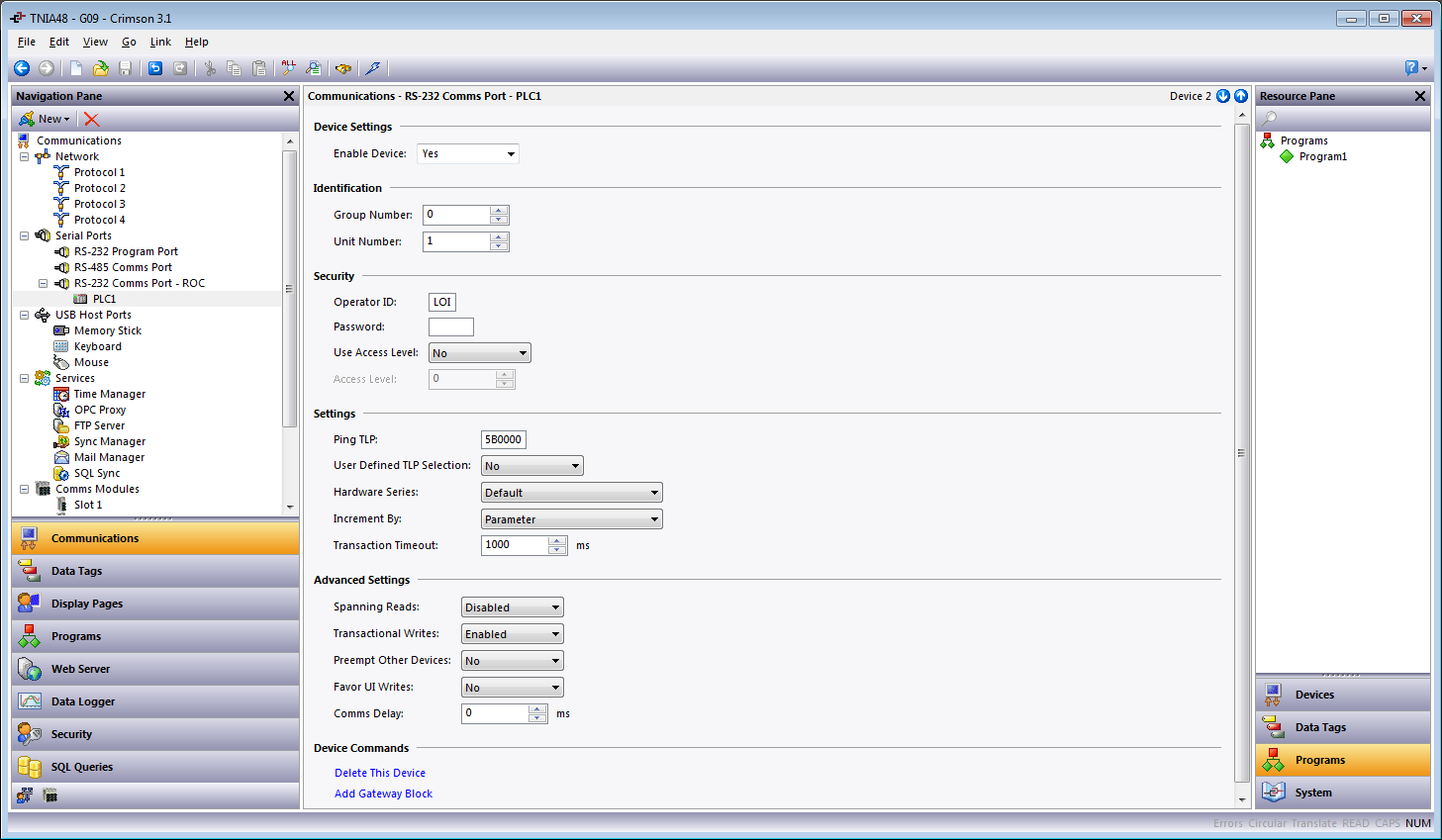

9. Navigate to the Resource Pane and click on the device below the Comms Port, PLC1 in this example; the Communications - RS-232 Comms Port -PLC1 popup shown in Figure 5 appears.
10. Configure the Identification section with the Group Number and Unit Number of the ROC device.
11. Configure the Security section parameters, as appropriate.
12. Under Settings:
a. Set the Ping TLP parameter so that it will return a UINT8 value.
- ROC800: 5B0000
-FB107: 000000
-FB1200: 010001
b. Set the User Defined TLP Selection parameter to:
1) Yes, to enter the TLP numbers manually.
2) No, to choose the TLPs by name.
c. If the User Defined TLP Selection is set to No, set the Hardware Series to the model of ROC being used.
13. Under Advanced Settings, set the Spanning Reads parameter to Disabled.
Figure 5.
Ethernet Configuration
ROCLINK Ethernet Configuration
Perform the following steps to configure an RLC device to communicate with an Emerson ROC using ROCLINK Ethernet Configuration:

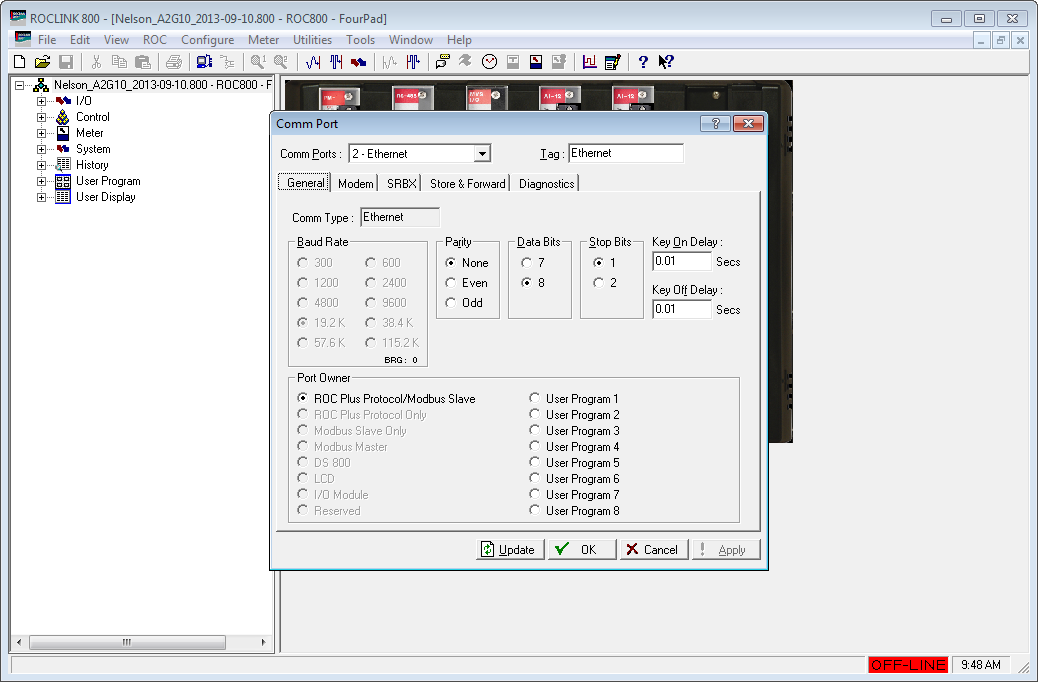

1. Referring to Figure 6, go to the menu bar and click ROC – Comm Ports.
2. Go to the Comm Ports drop down menu and select 2 - Ethernet.
3. Click the General tab.
4. Set the Port Owner to an option that includes ROC Plus Protocol.
Figure 6.

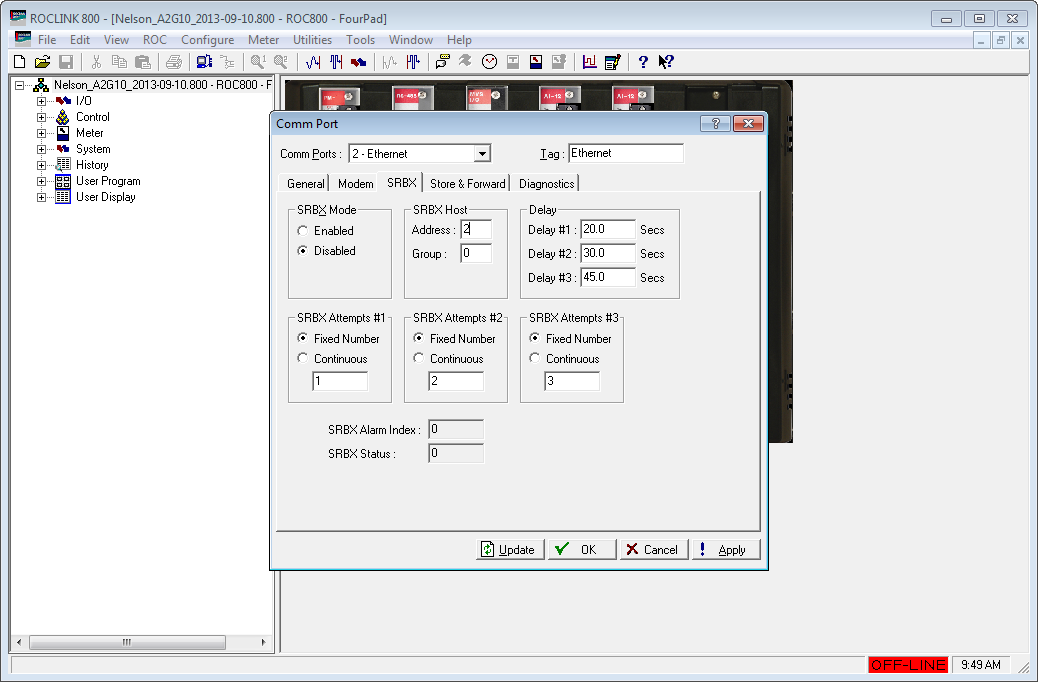

5. Referring to Figure 7, click the SRBX tab.
6. Configure the Address and Group parameters in the SRBX Host section, as appropriate.
Figure 7.
7. Click OK.

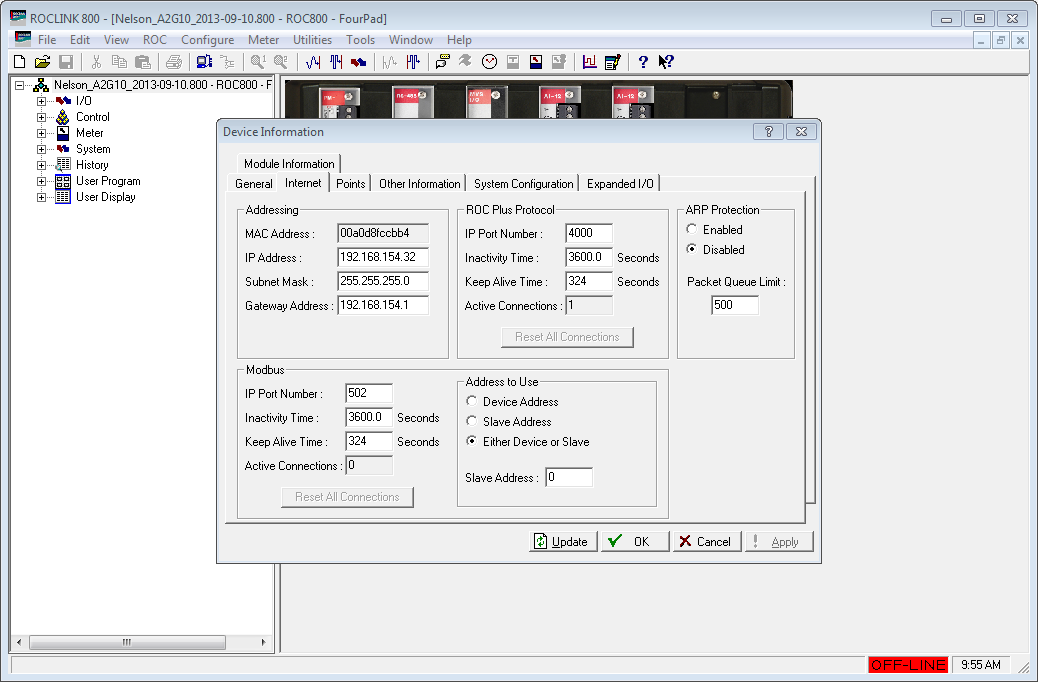

8. Referring to Figure 8, go to the menu bar and click ROC – Information.
9. Click on the Internet tab.
10. Configure the Addressing section, as appropriate.
11. Configure the IP Port Number under the ROC Plus Protocol heading, as appropriate.
Figure 8.
12. Click OK.
Crimson Ethernet Configuration
Perform the following steps to configure an RLC device to communicate with an Emerson ROC using Crimson Ethernet Configuration:

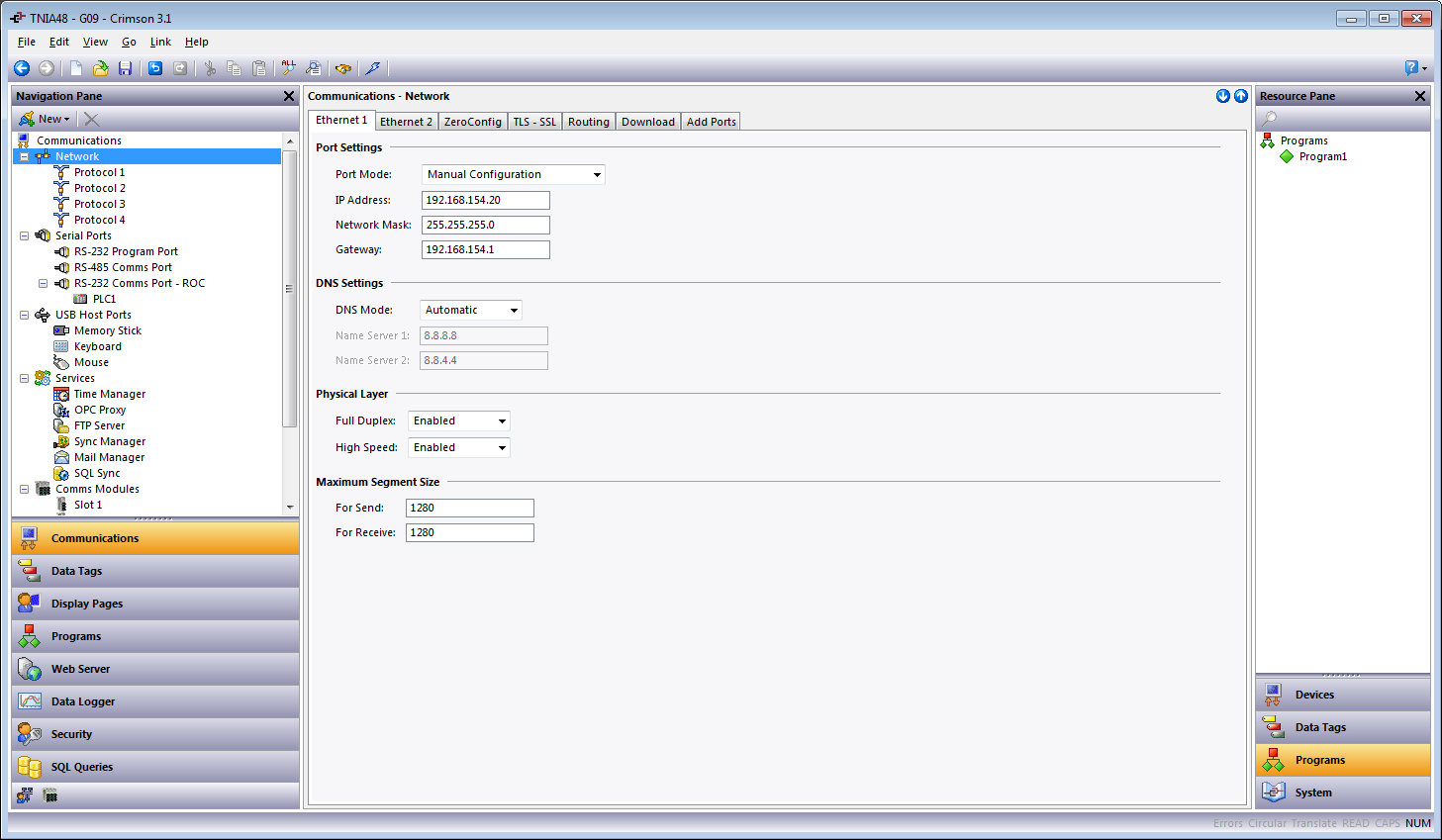

1. Referring to Figure 9, navigate to the Communications section.
2. Click on Network.
3. Click on the tab of the port to be configured; Ethernet 1 in this example.
4. Configure the Port Settings parameters, as needed for the application.
Figure 9.

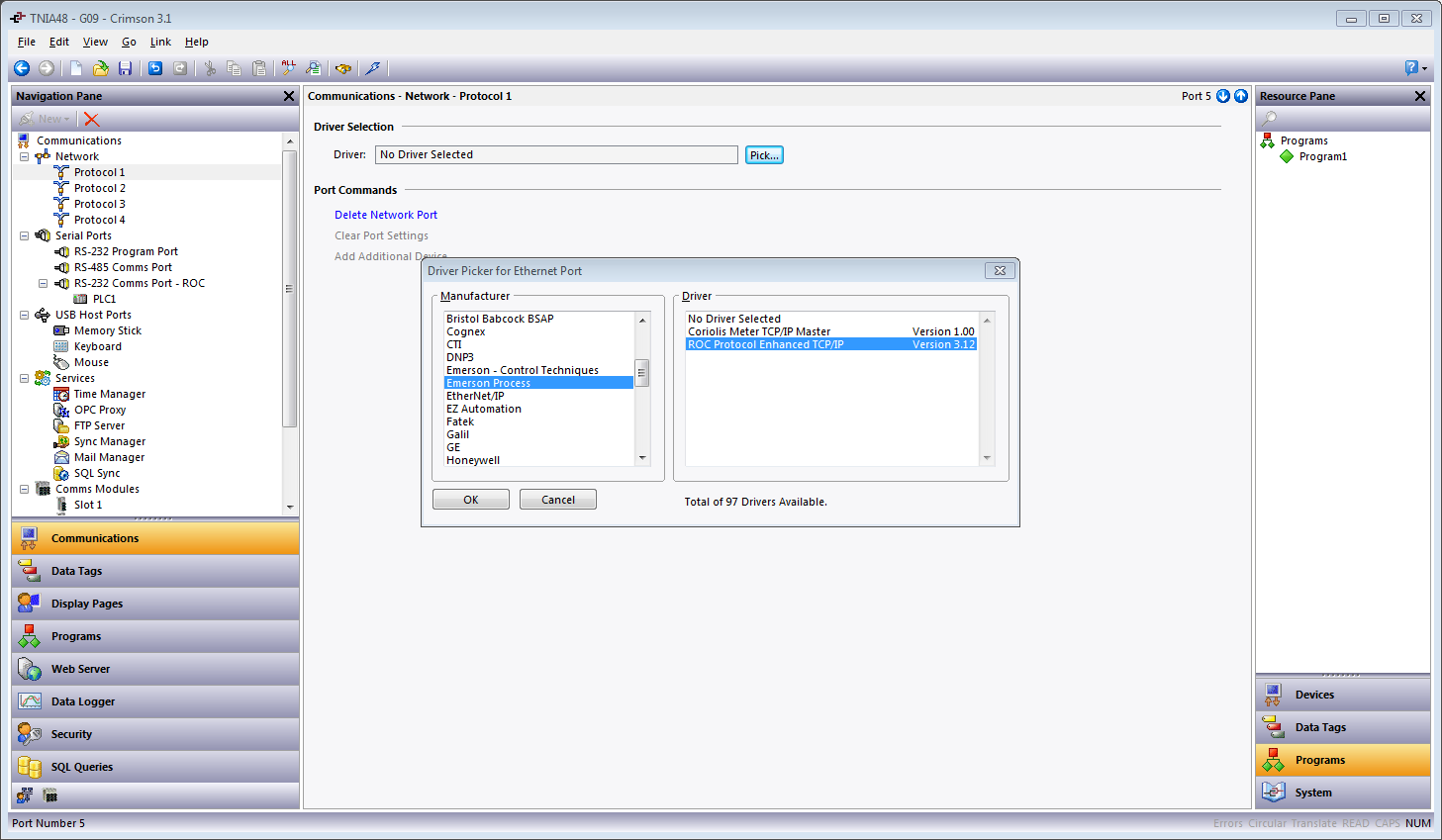

5. Referring to Figure 10, go to the Navigation Pane and click on one of the available protocols under Network; Protocol 1 in this example. The Communications - Network - Protocol 1 popup appears.
6. Click the Pick button under the Driver Selection heading; the Driver Picker for Ethernet Port popup appears.
7. Under the Manufacturer heading, select Emerson Process.
8. Under Driver, select ROC Protocol Enhanced TCP/IP.
Figure 10.

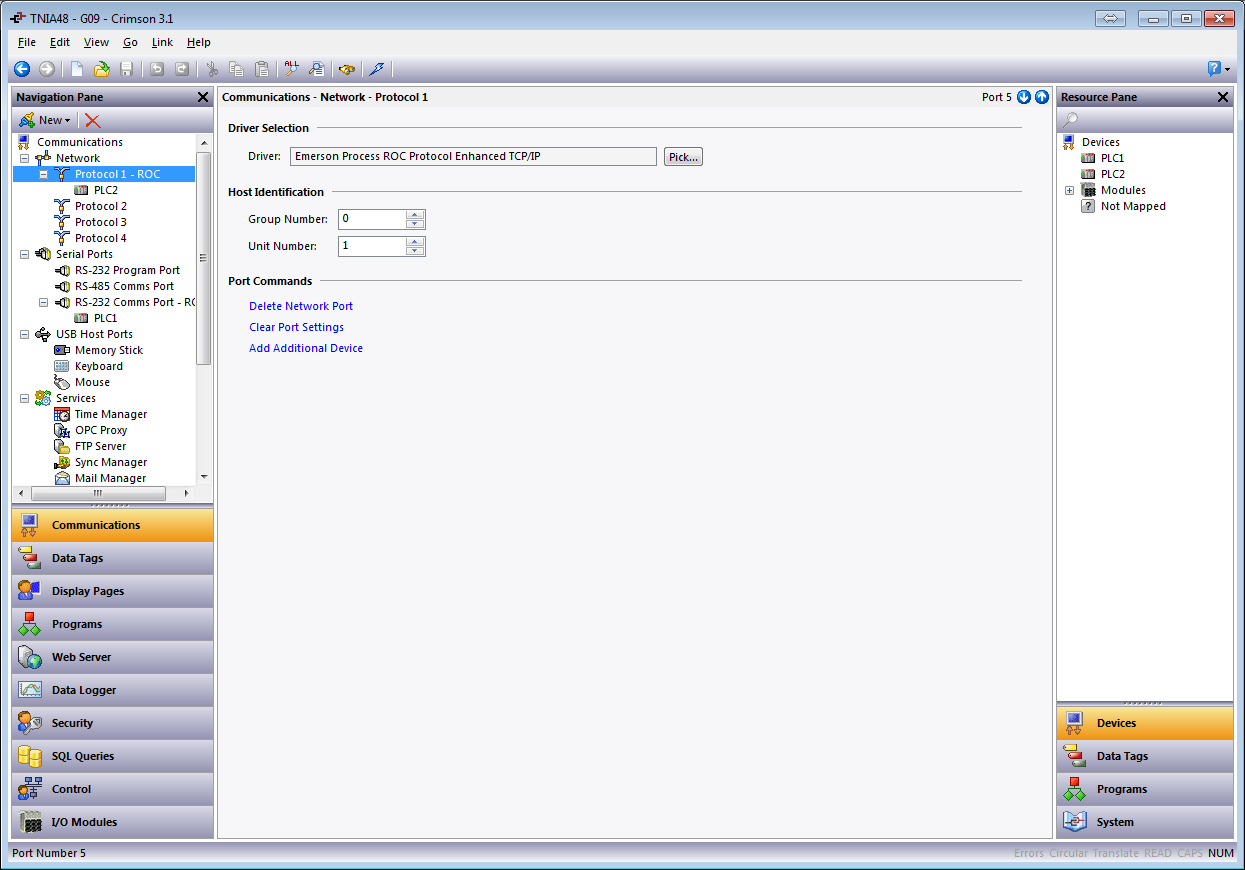

9. Click OK; the Communications - Network - Protocol 1 popup shown in Figure 11 appears.
10. Referring to Figure 11, configure the Host Identification section with the Group Number and Unit Number that the RLC device will use.
Figure 11.

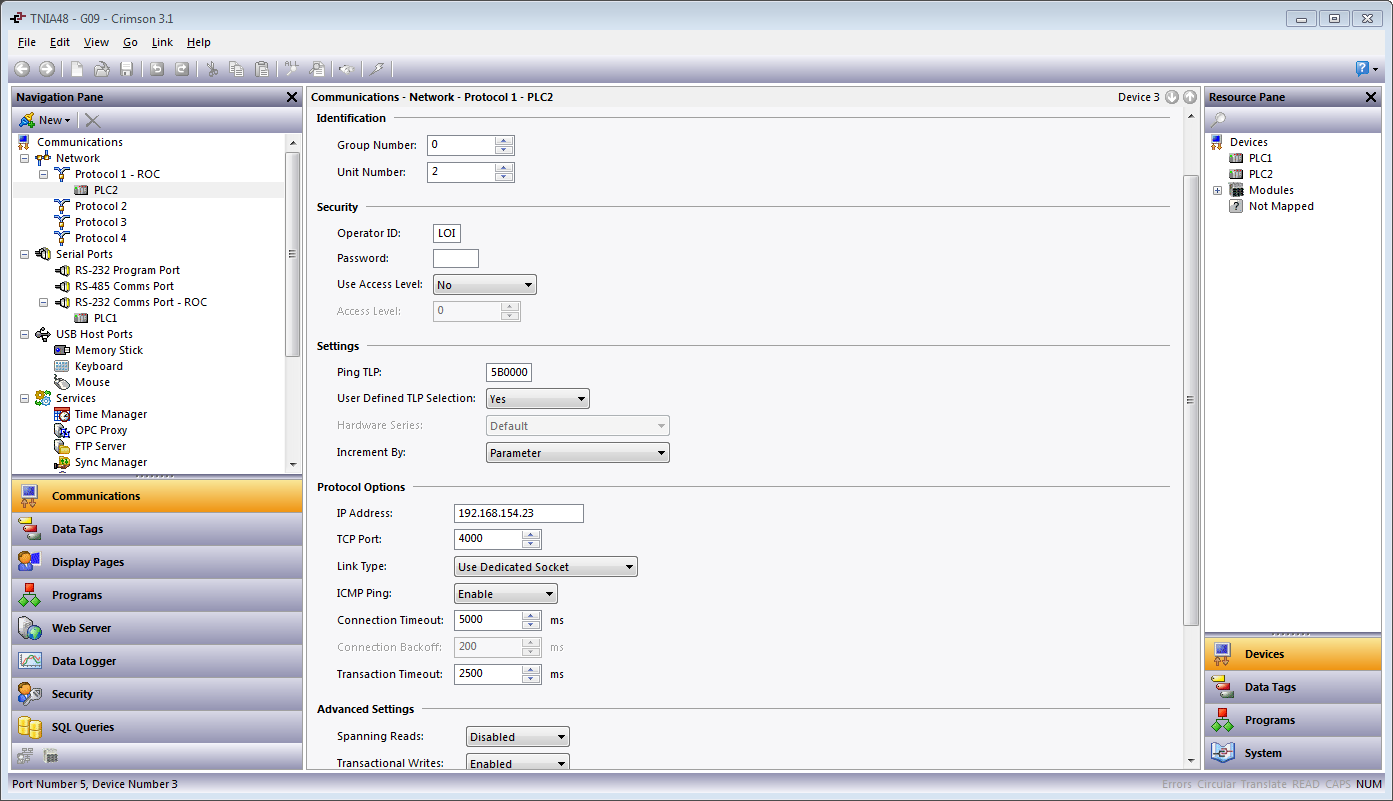

11. Referring to Figure 12, go to the Navigation Pane and click on the device below the Protocol1 - ROC heading; PLC2 in this example. The Communications - Network - Protocol 1 - PLC2 popup appears.
12. Configure the Identification section with the Group Number and Unit Number of the ROC device.
13. Configure the Security section, as needed.
14. Under Settings:
a. Set the Ping TLP parameter to a TLP that will return a UINT8 value.
b. Set the User Defined TLP Selection parameter to:
1) Yes, to enter the TLP numbers manually.
2) No, to choose the TLPs by name.
c. If the User Defined TLP Selection parameter is set to No, set the Hardware Series parameter to the model of ROC being used.
d. Specify whether the Increment By parameter increments by Parameter or Logical Number. The correct setting here is most useful when using the smart duplicate tag function or data arrays. When using data arrays, it is most useful to set this parameter to Logical Number as all array elements will be guaranteed to be of the same data type. It is recommended that this setting be configured before tags are mapped to this device. In the event that both increment methods apply within a single application, it is possible to create two identical devices for the Emerson Process ROC Protocol Enhanced driver; with only the Increment By parameter set uniquely.
15. Under Protocol options, set the IP Address and TCP Port parameters to match the ROC’s configuration.
16. Set the Link Type parameter to Use Dedicated Socket, unless more than four devices will be configured under this protocol.
17. Under Advanced Settings, set the Spanning Reads parameter to Disabled.
Figure 12.
Mapping Crimson Tags
User Defined TLPs

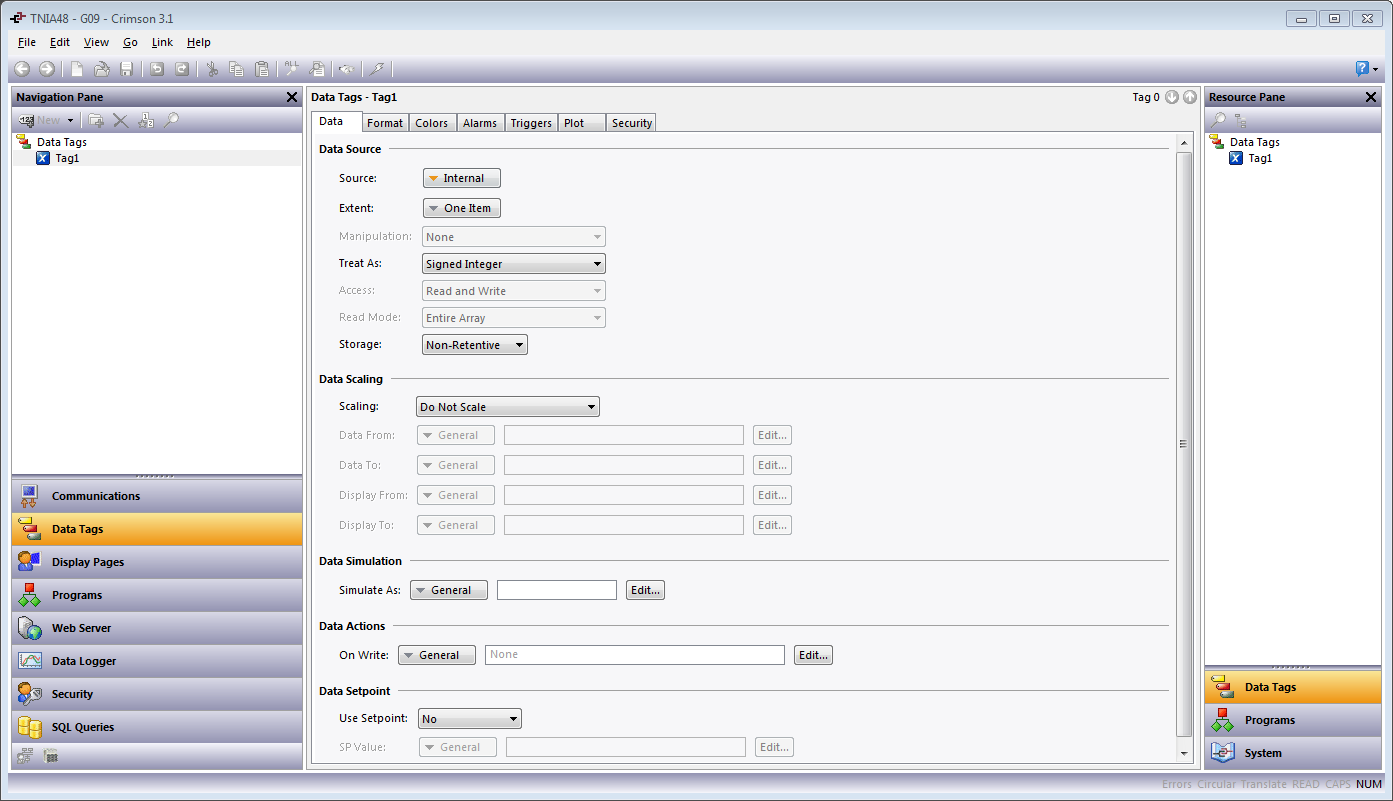

1. Referring to Figure 13, navigate to the Data Tags section.
2. Create a new data tag of the appropriate type; Numeric in this example.
3. Click on the newly created tag.
Figure 13.

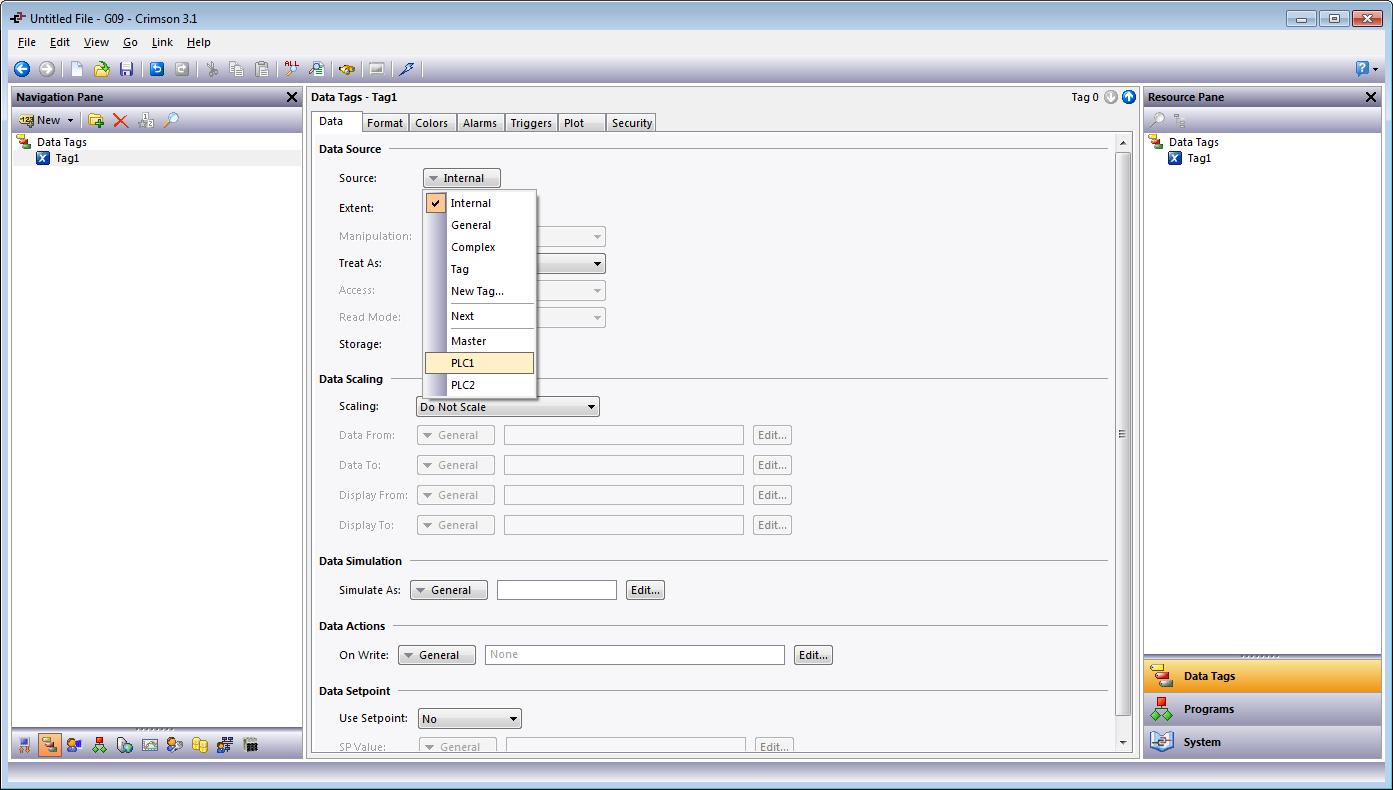

4. Click Internal next to the Source parameter and select the ROC device; PLC1 in this example. The Select TLP popup appears, as shown in Figure 14.
Figure 14.

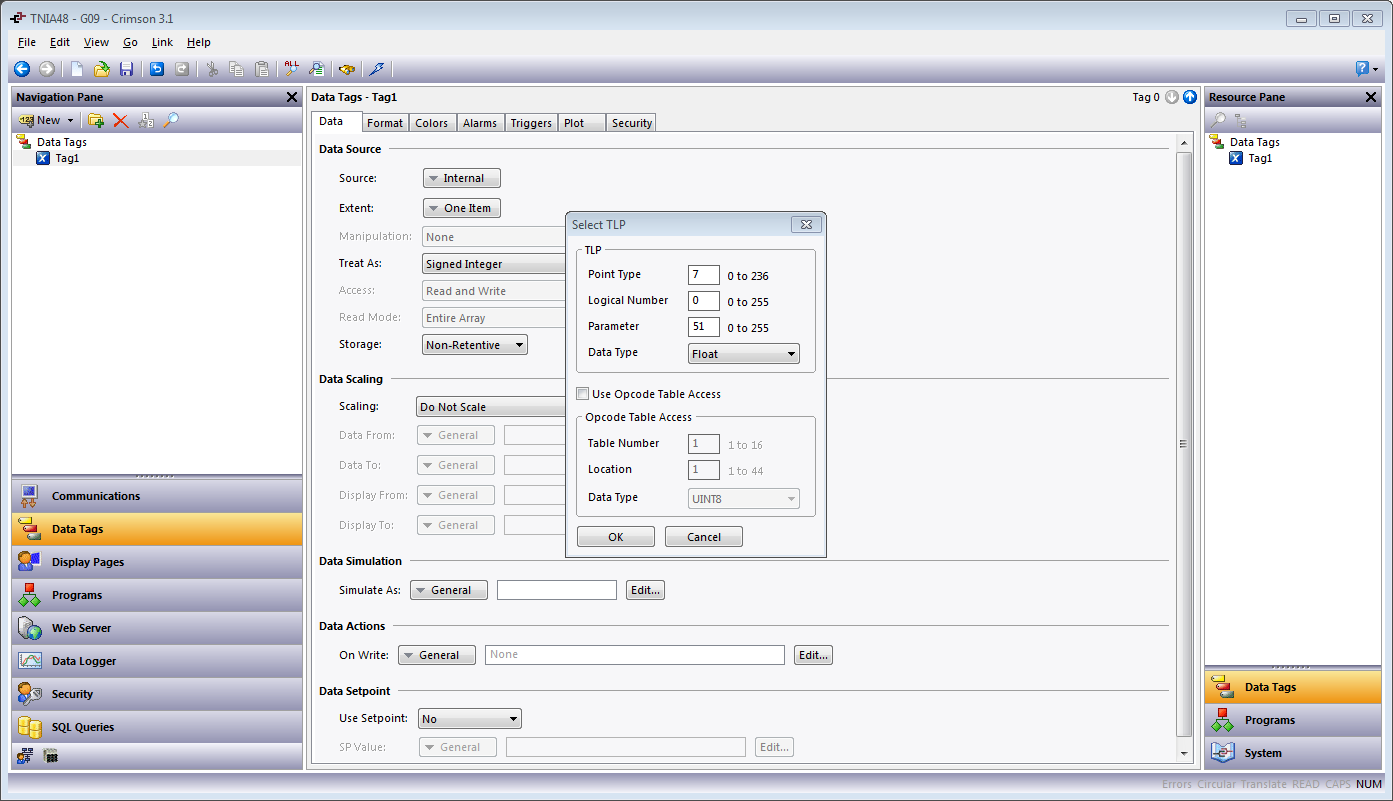

5. Referring to Figure 15:
a. Choose the appropriate Point Type, Logical Number, Parameter, and the associated Data Type settings; 7, 0, 51, and Float in this example.
OR
b. Check the Use Opcode Table Access option and specify the Table Number, Location, and Data Type settings.
Figure 15.
6. Click OK.
Using Predefined TLPs

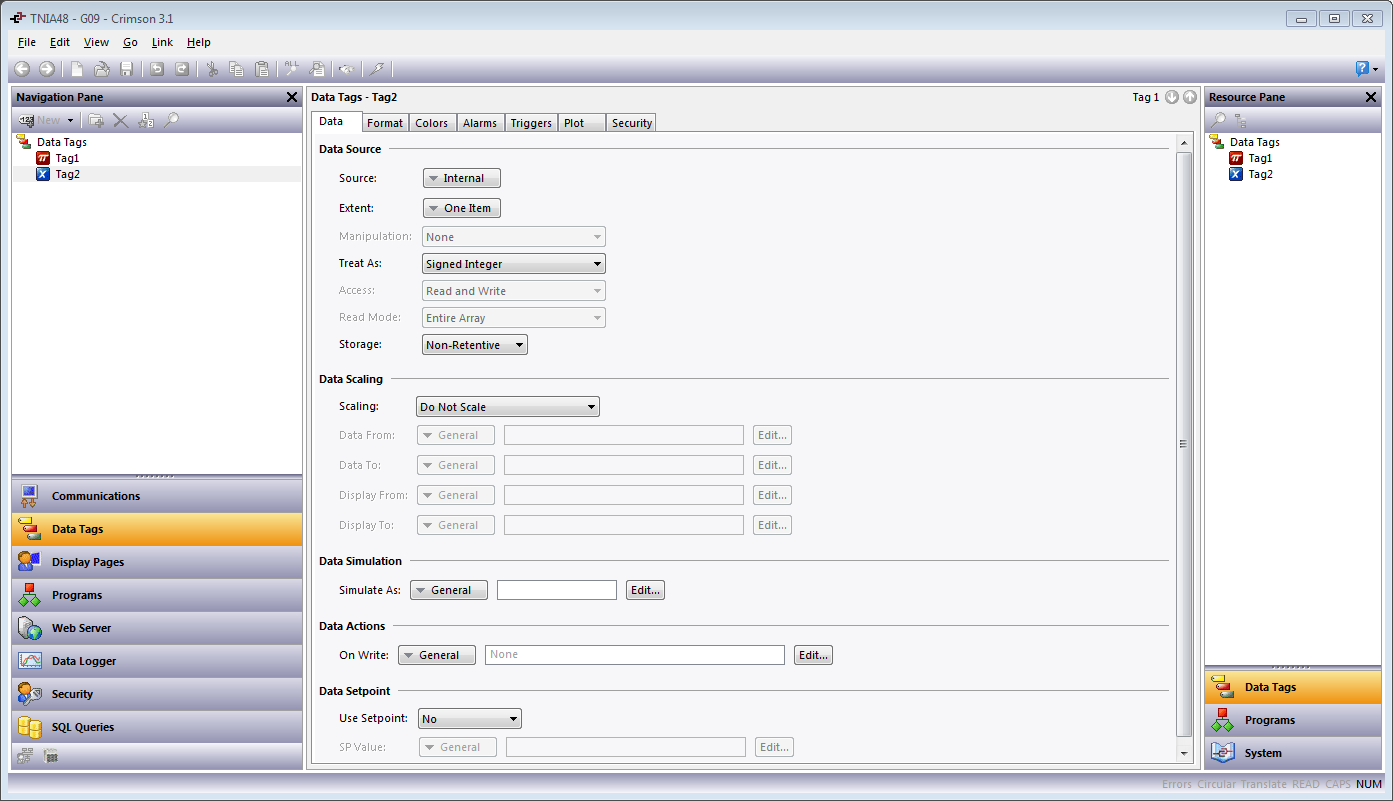

1. Referring to Figure 16, navigate to the Data Tags section.
2. Create a new data tag of the appropriate type; Numeric in this example.
3. Click on the newly created tag.
Figure 16.
4. Click Internal next to the Source parameter and select the ROC device; PLC2 in this example. The Select TLP popup appears, as shown in Figure 17.
Figure 17.

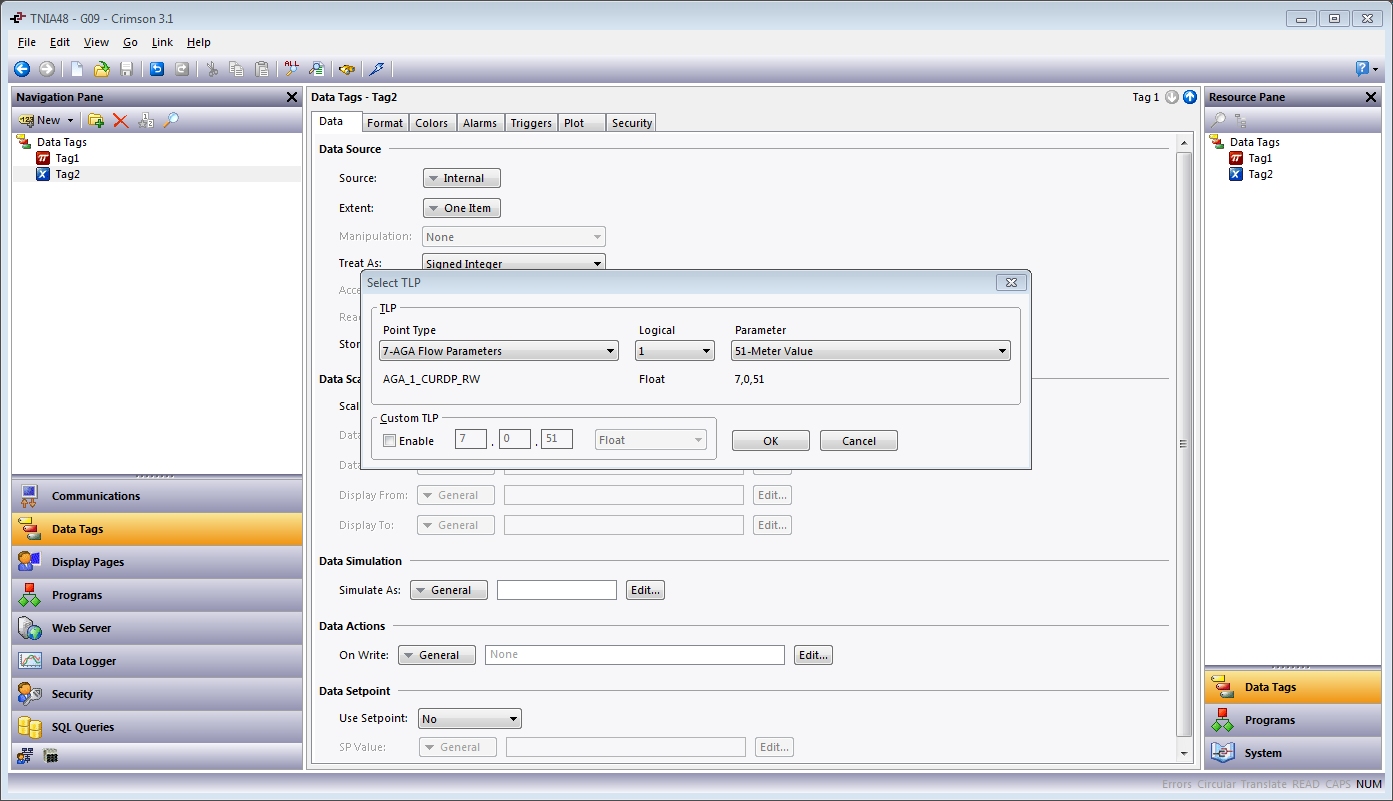

5. Referring to Figure 18:
a. Choose the appropriate Point Type, Logical Number, Parameter, and the associated Data Type settings; 7-AGA Flow Parameters, 1, and 51-Meter Value in this example.
OR
b. Check the Custom TLP option and enter the Point Type, Logical Number, Parameter, and the associated Data Type settings.
Figure 18.
6. Click OK.
Special Tag Mapping Considerations
Strings
When accessing items with a data type of “String”, the item should be assigned to a string tag and the tag’s Packing should be set to ASCII BigEndian. Since packing is used, the string length must be set to the selected text length or the selected text length + 2 when the selected text length is not divisible by 4. If the string tag is not initially set to the proper length, the communication blocks may need to be rebuilt. This can be accomplished by running the Rebuild Comms Blocks utility available in Crimson’s File->Utility menu. Care should be taken when writing to string items. In the event that the current string value contains the same first 4 or more characters as the desired string value, the string should be cleared before writing the desired string.
64-Bit Data
Access to 64-bit double values is possible by using data arrays in conjunction with user functions provided in Crimson; Version 3.0 and later. Simply map all parameters of type double to a numeric tag array. The array selection is available in each tag. Then use the following user functions to get and set double values, respectively:
1) cstring AsTextR64(Data)- Where Data is the first element in the array of the double value that will be passed as a string.
2) void TextToR64(Input, Output)- Where Input is a string representing a double value and
Output is the first element in the array of the double value to be set.
NOTE: Other 64-bit math functions are also available. Please review the Crimson 3.0 Reference Manual.
Time Parameters
Use Crimson’s Time and Date primitive or format type when displaying the target device’s Current Time (Parameter 8 of Point Type 12, Parameter 7 of Point Type 136) or any other Time data type.
