Abstract
This document describes setting up a connection that allows two Red Lion devices to communicate via OPC UA.
Products
FlexEdge series, CR3000 HMIs, and Graphite HMIs
Use Case
Establishing communication between two Red Lion devices with one device set up as an OPC UA Client and the other set up as an OPC UA Server.
Required Software
Crimson 3.1 and Crimson 3.2
Introduction
There are three different methods to get two Red Lion devices to communicate. They are Modbus TCP/IP, OPC Proxy TCP/IP Master and OPC UA. This tech note will talk about how to use OPC UA to get two Red Lion devices to communicate.
OPC UA Setup:
In this example, we are using a Graphite G12 HMI (Crimson 3.1) as an OPC UA Client and a FlexEdge DA50A(Crimson 3.2) running as an OPC UA server.
Make sure you connect the two Red Lion devices and your PC to the same Ethernet switch.

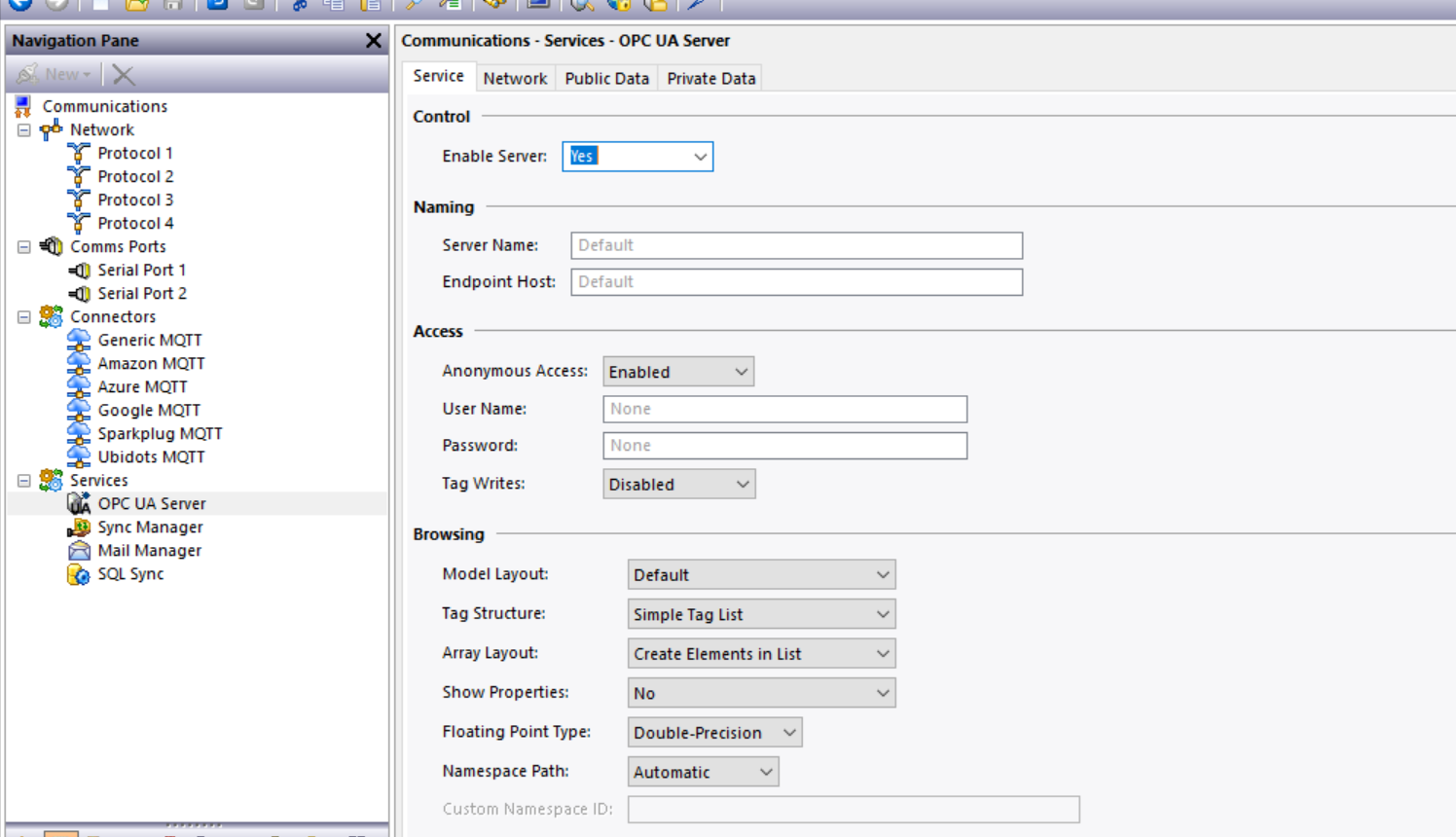

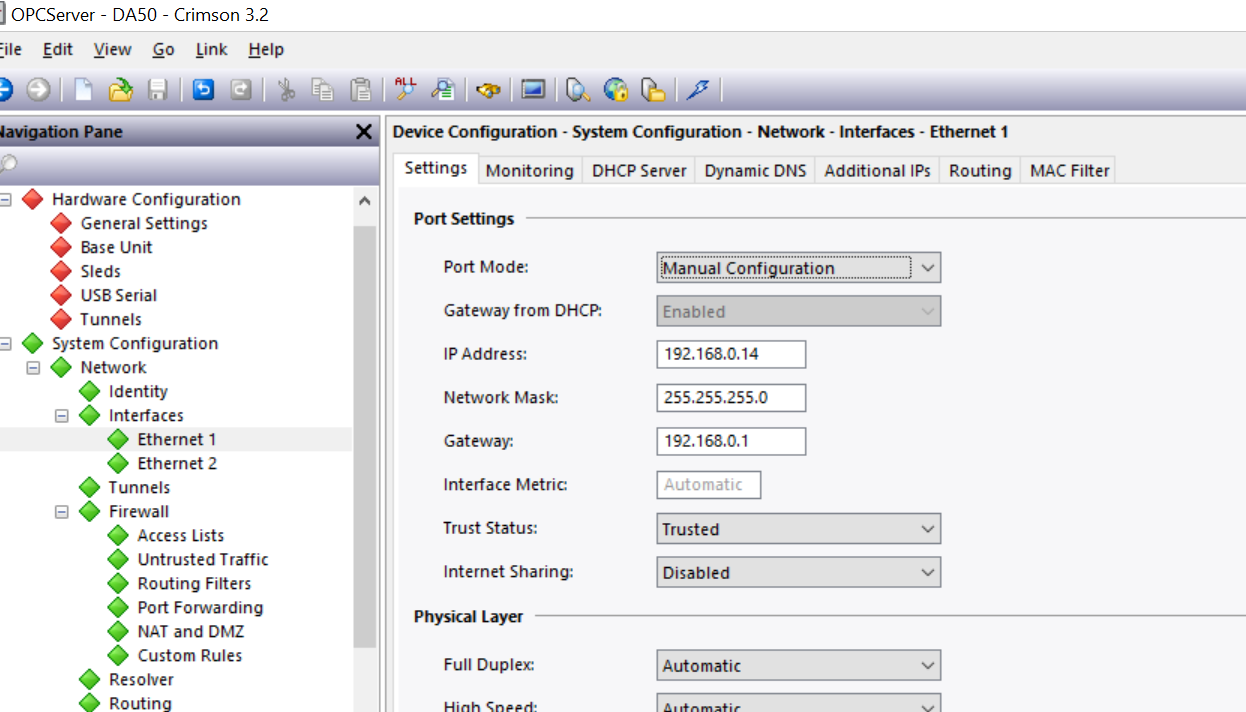

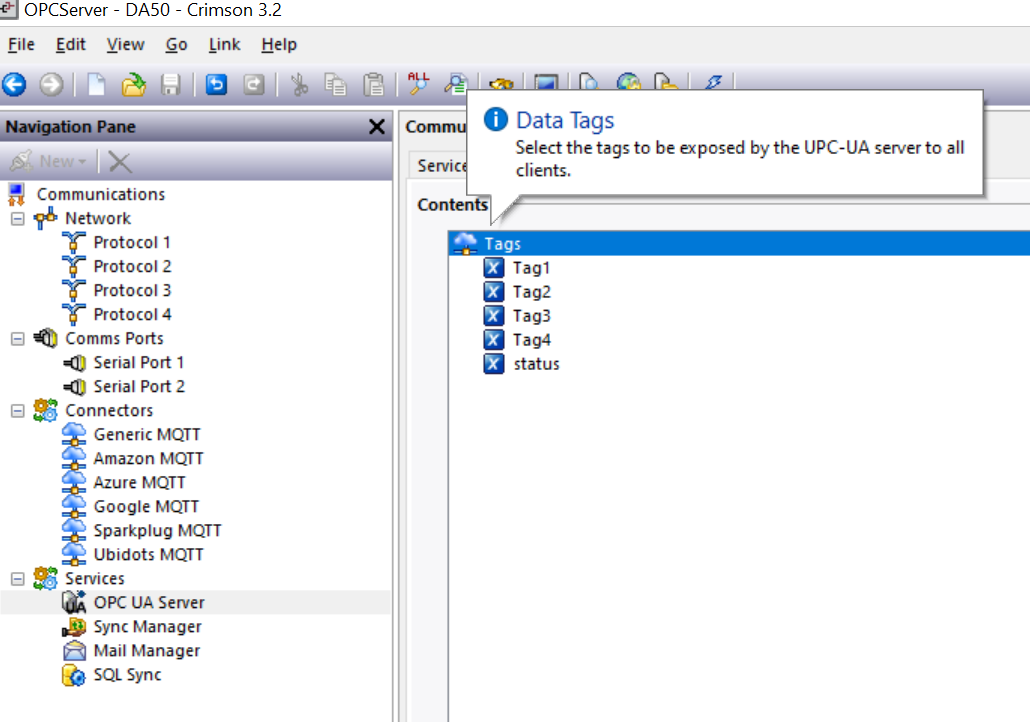

Below are the settings that are needed in Crimson 3.2 for the FlexEdge DA50A running as an OPC UA Server
Download the database with the settings above to the FlexEdge DA50A unit.

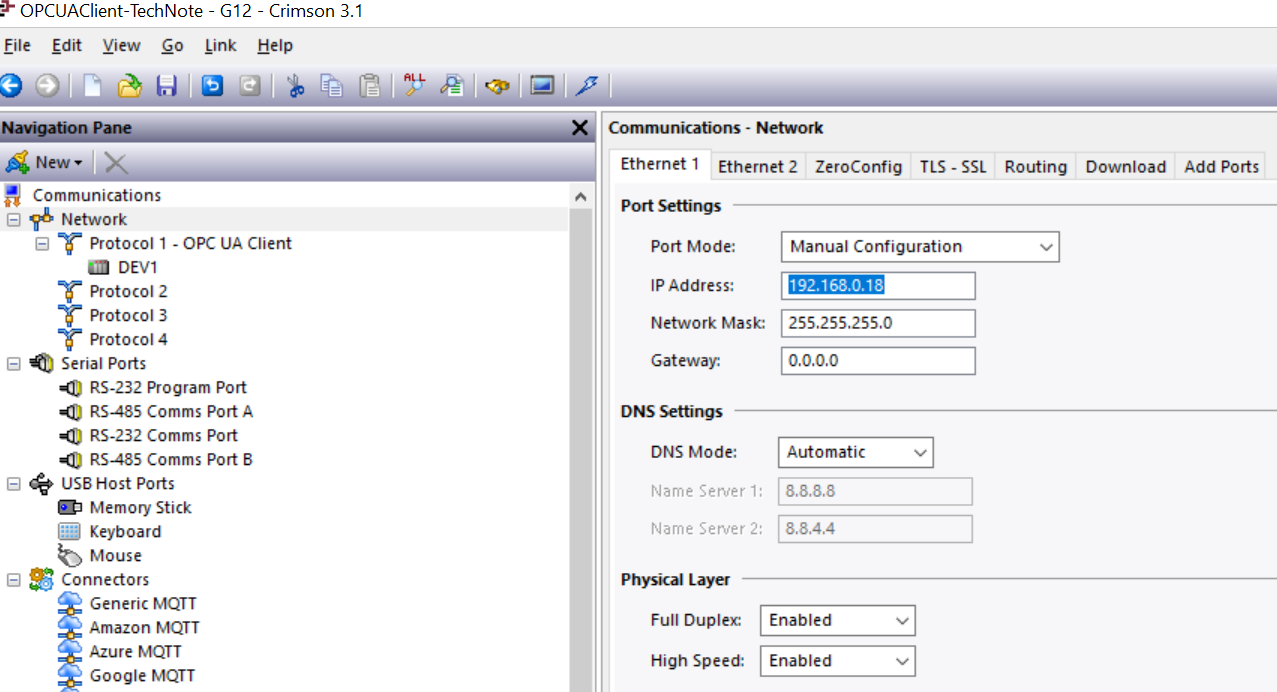

Below are the settings for the G12 HMI which is running as OPC UA Client

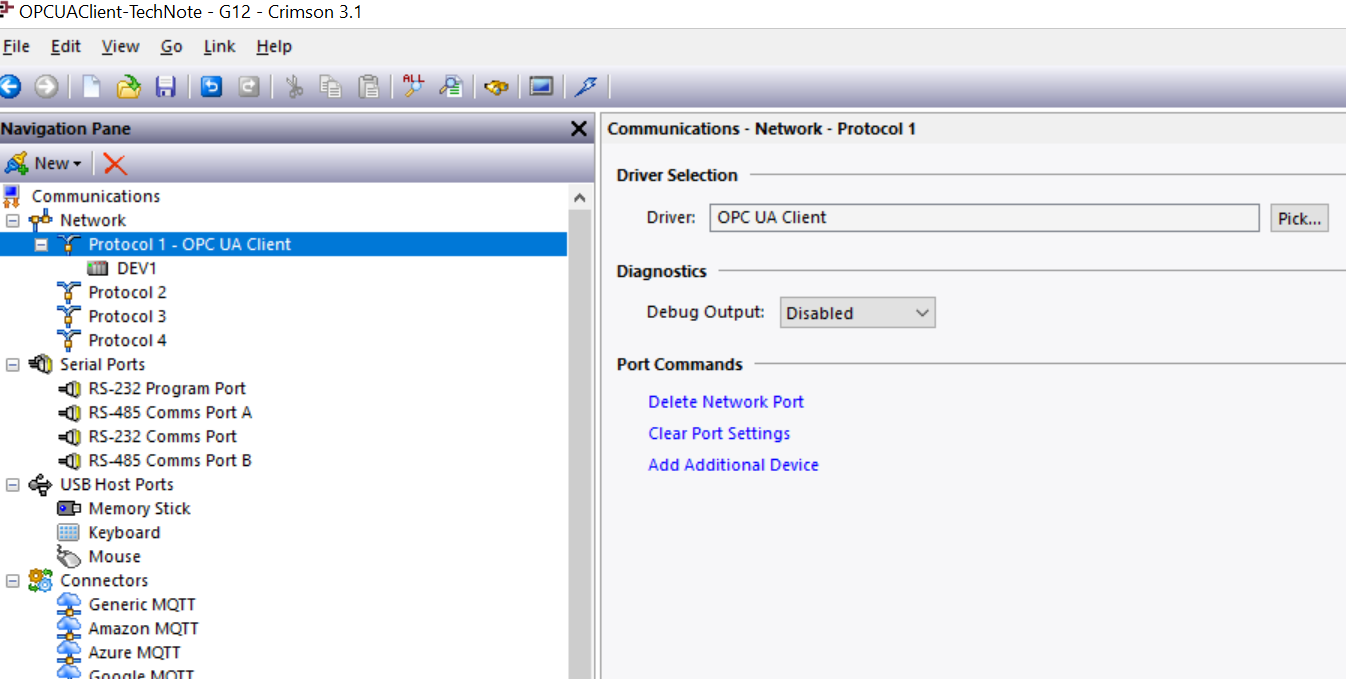

Go to Protocol 1 and pick OPC UA Client driver

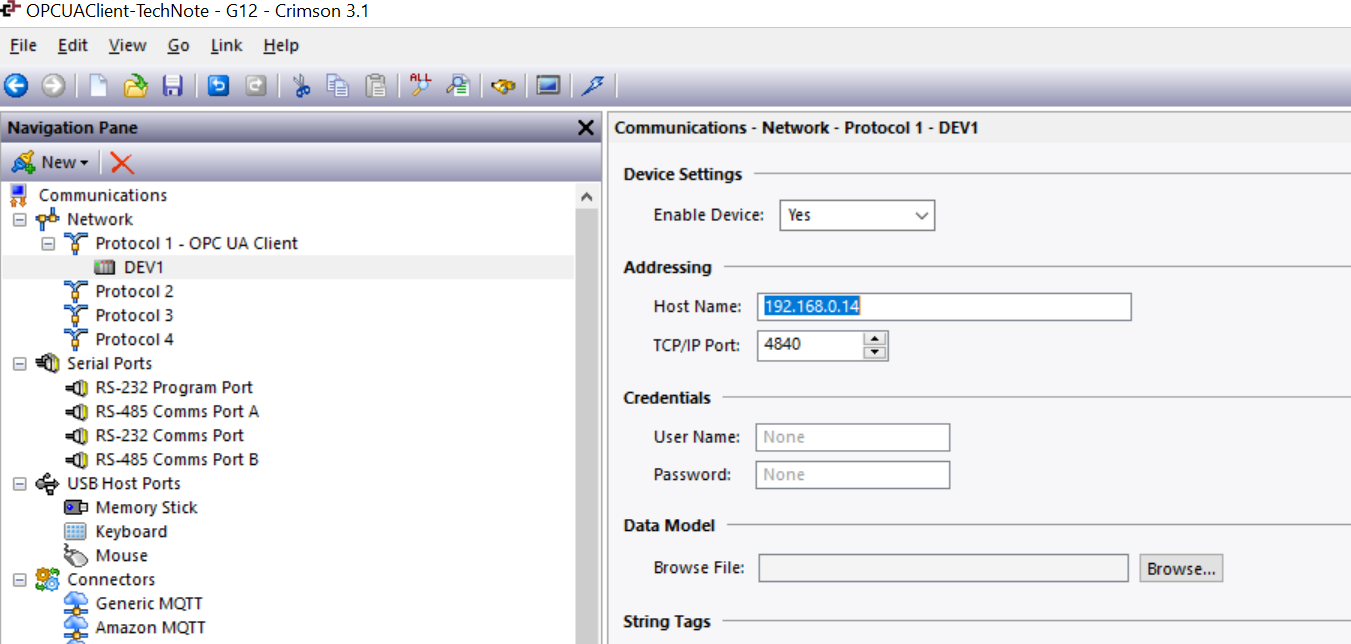

Enter the IP Address of the FlexEdge DA50A device (OPC UA server) in the Host Name section as seen below
Now, download this database to the G12 HMI unit by doing a link -> update or send.

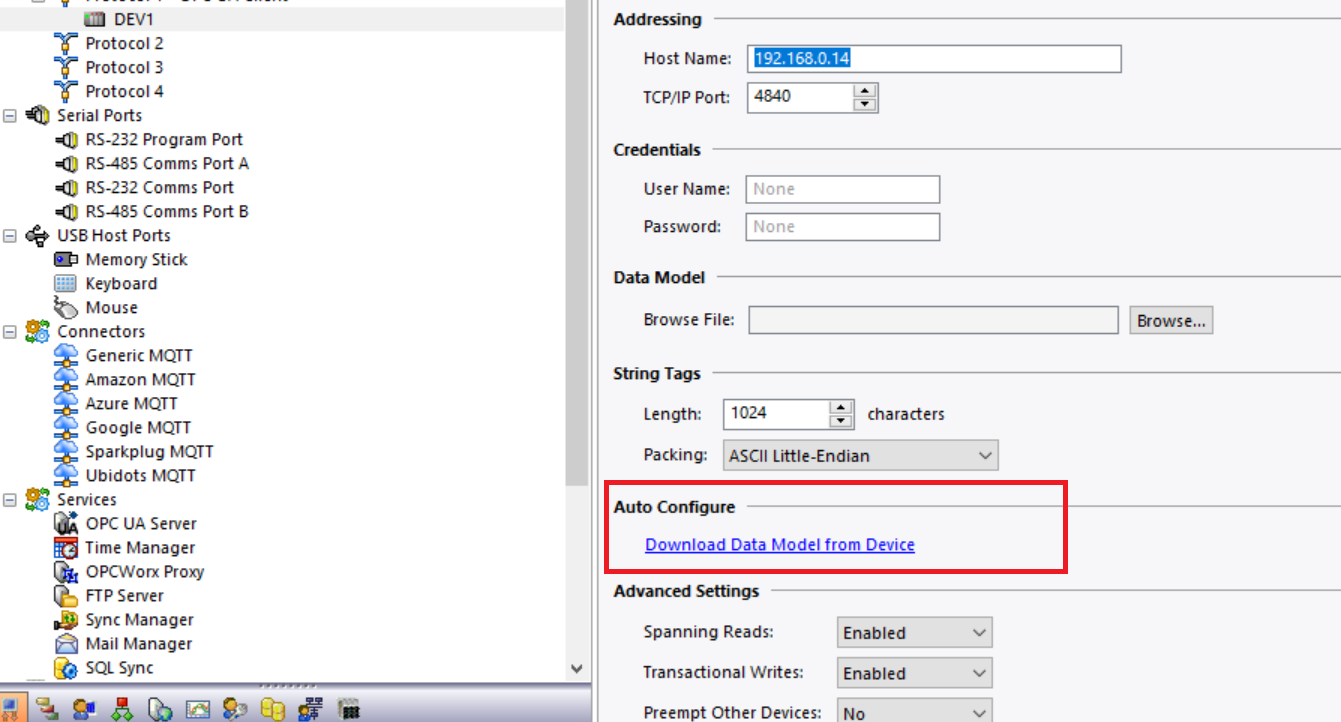

Once the database is successfully downloaded, click on "Download Data Model from Device" in the Crimson 3.1 database as seen below

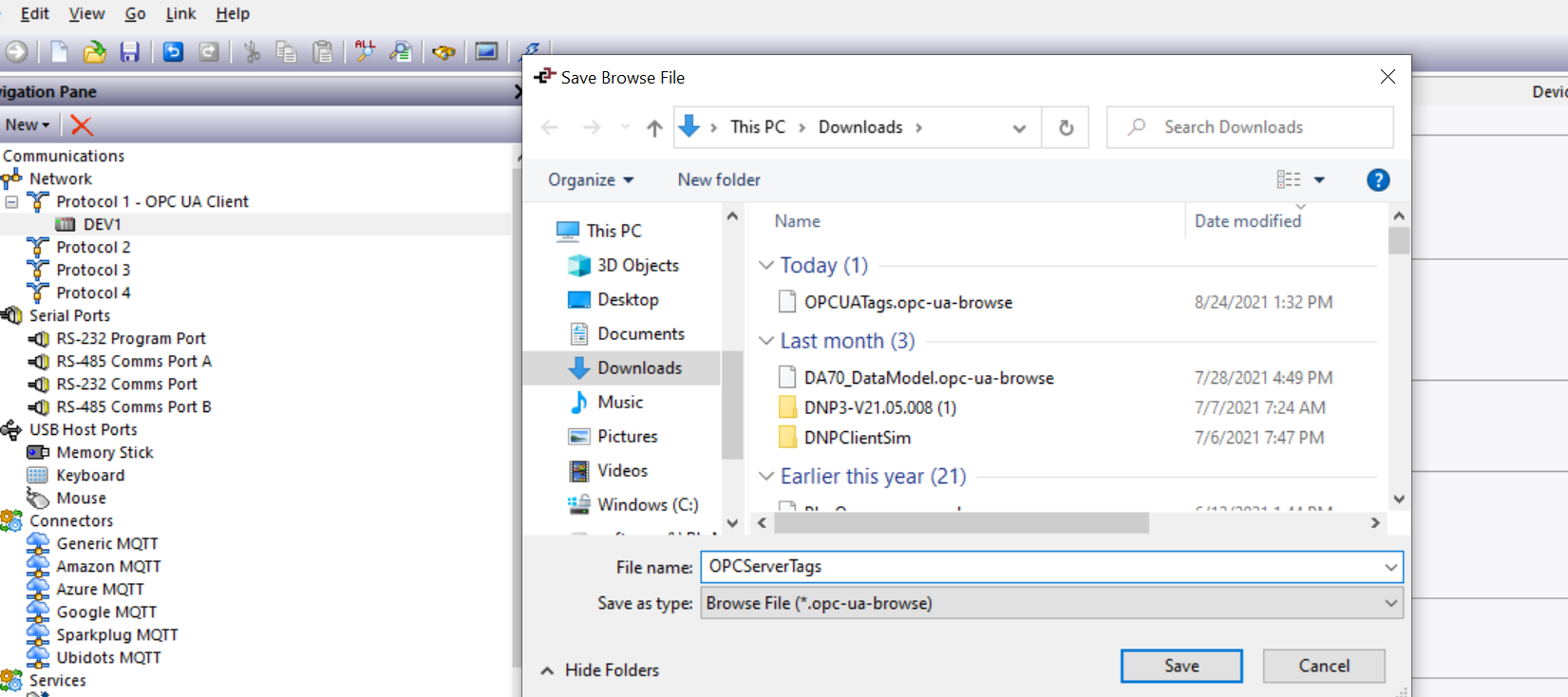

You will be asked to save under a name. I am calling it as “OPCServerTags”.

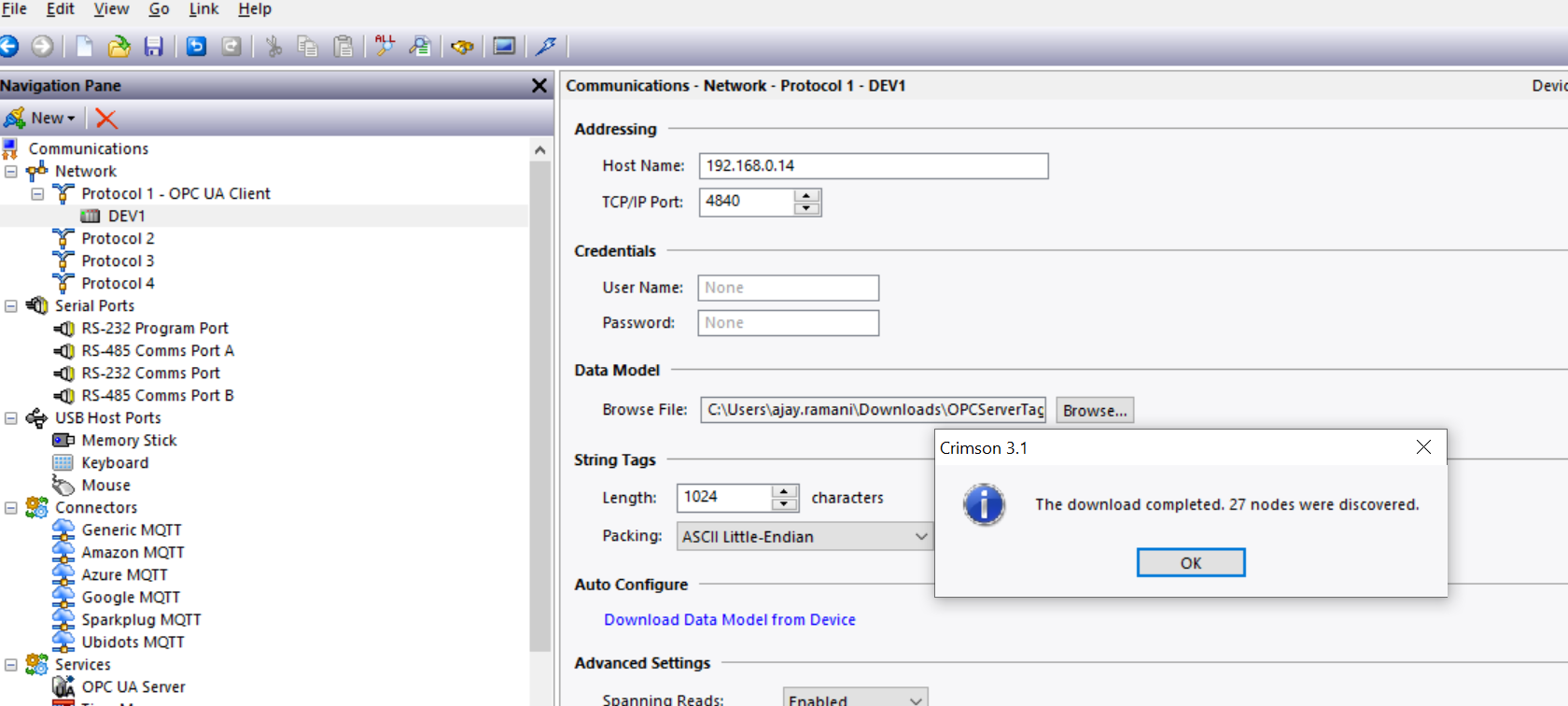

Once you hit save, the software is going to pull up all the tags from the Flexedge DA50A unit (OPC UA Server).

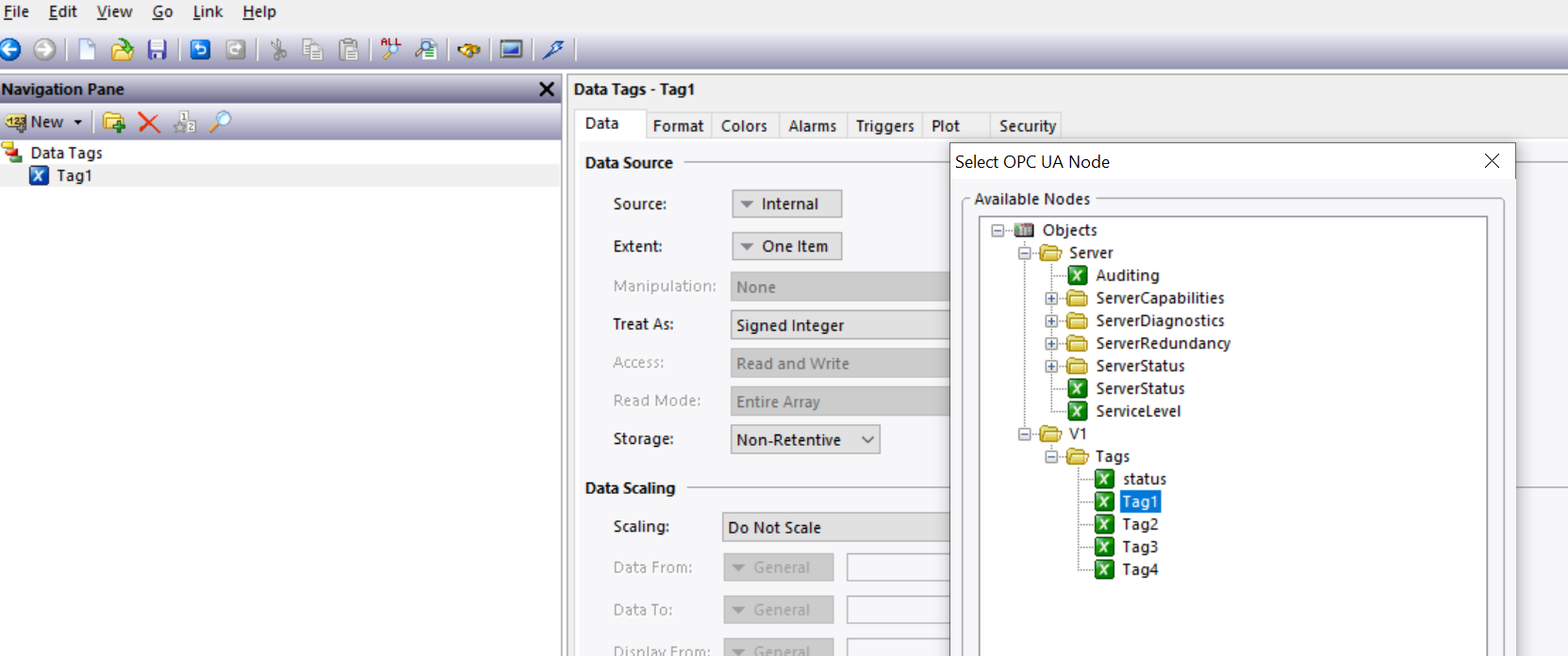

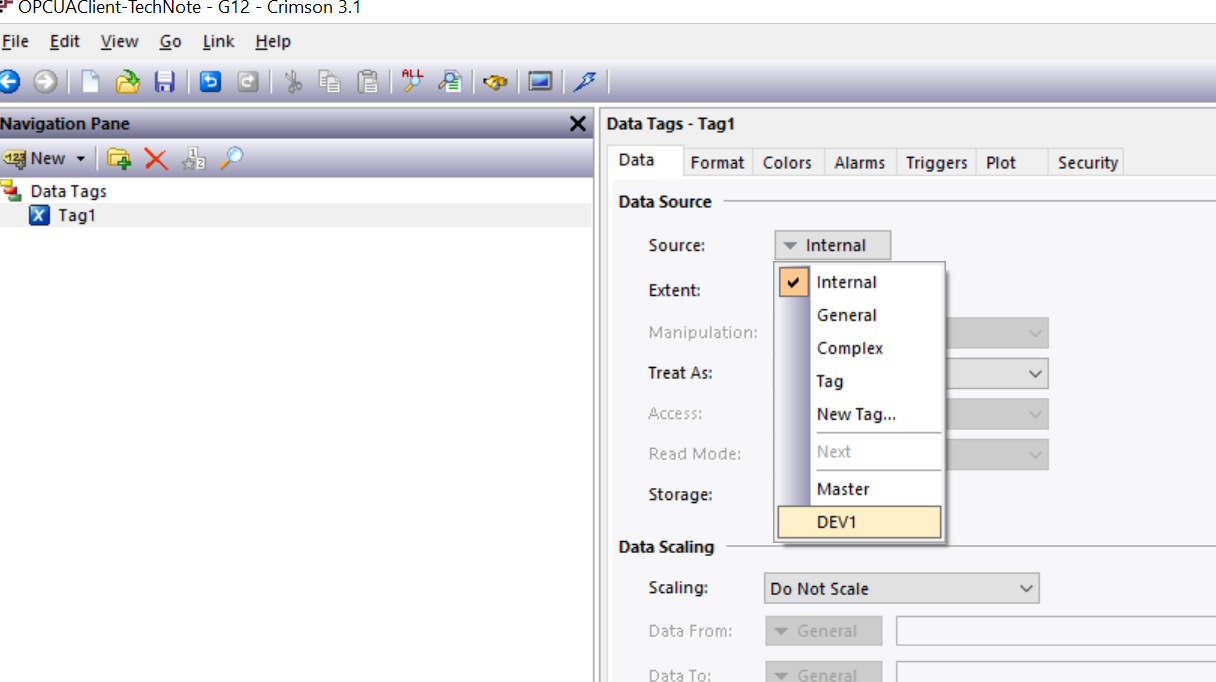

Go to the data tags section in the Crimson 3.1 database, create a new tag, and map to any of the OPC UA Server tags.
Once you have finished creating tags and mapped them to OPC UA server tags, you can download the database by doing a link -> update or send after which the G12 HMI should be able to read from or write to the Flexedge DA50A unit via OPC UA successfully.
Attached are the two Crimson databases referenced in this tech note.
