Industrial Automation Tech Note 13 - TNIA13

Abstract:

This document describes how to add custom Fonts, including expanded Glyphs, to Crimson 3 databases.

Products:

Red Lion Controls CR1000 Human Machine Interface (HMI), CR3000 HMI, Data Station Plus (Excludes LE), G3 HMI, G3 Kadet HMI, Graphite® Controller, Graphite HMI, Modular Controller (Excludes LE and V2), and ProducTVity Station™

Problem Solved: Using Custom Fonts along with Translations

The Hei 16 and 24 Fonts are the only included options that support the FULL Character set. Follow the steps in this documents to use the full character set of a custom Font.

Required Software:

Crimson® 3.0, or 3.1

Required Operating System:

Microsoft Windows 7, or above

Using Custom Fonts

1. Use a non-system Font by clicking Pick… next to the Font selection in a Data or Text Box.

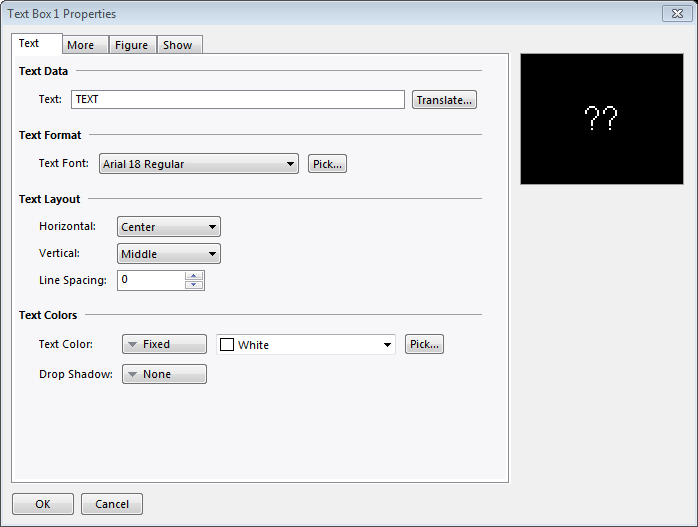

2. Observe the ?? in the preview window of Figure 1, this is because Crimson is not using the full Arial 18 character set.

Figure 1.

3. Click on Display Pages in the Navigation Pane.
4. Click on Pages at the top of the page list in the Navigation Pane.

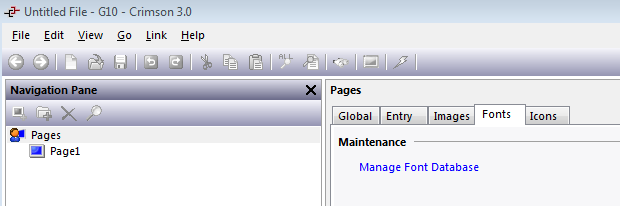

5. Referring to Figure 2, click on the Fonts tab in the Editing Pane.

Figure 2.

6. Click on Manage Font Database in the Editing Pane
7. Double-click the Font to modify.
8. Click Yes to accept the warning that this action cannot be undone (using undo) and will clear the undo list.

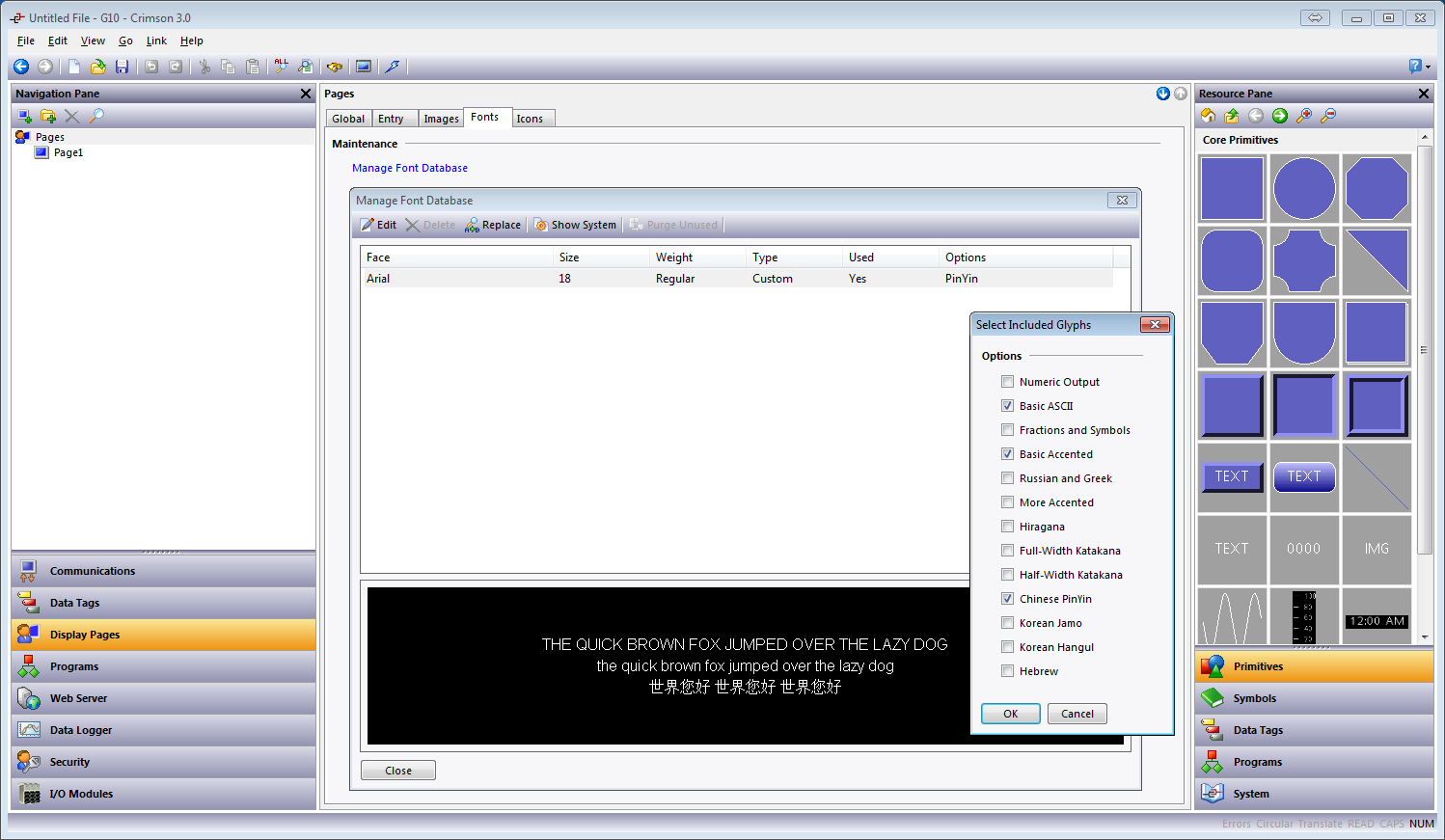

9. Referring to Figure 3, select the options required by the translations that will be used in this database.

Figure 3.

10. Click OK.
11. Click Close.
12. Click on the page to refresh the preview.
13. Observe the correct characters are now displayed.
