Abstract
Red Lion Workbench has native support for many fieldbus protocols. Only a subset of these drivers are supported in the ST-IPm-8460, VT-mIPm-138-D and VT-mIPm-248-D. This document will be updated to include additional fieldbus protocols as they become available.
Products
ST-IPm-8460
VT-mIPm-138-D
VT-mIPm-248-D
Use Case: Drivers supported in the Red Lion Workbench and ST-IPm-8460
Required Software
Red Lion Workbench 1.0.3 or higher.
ST-IPm-8460 firmware 7.0.101 or higher.
Sixnet I/O Tool Kit 5.0.101 or higher.
Drivers currently supported
- Modbus Master
- Modbus Slave
Selecting the Fieldbus Protocol in Red Lion Workbench
-

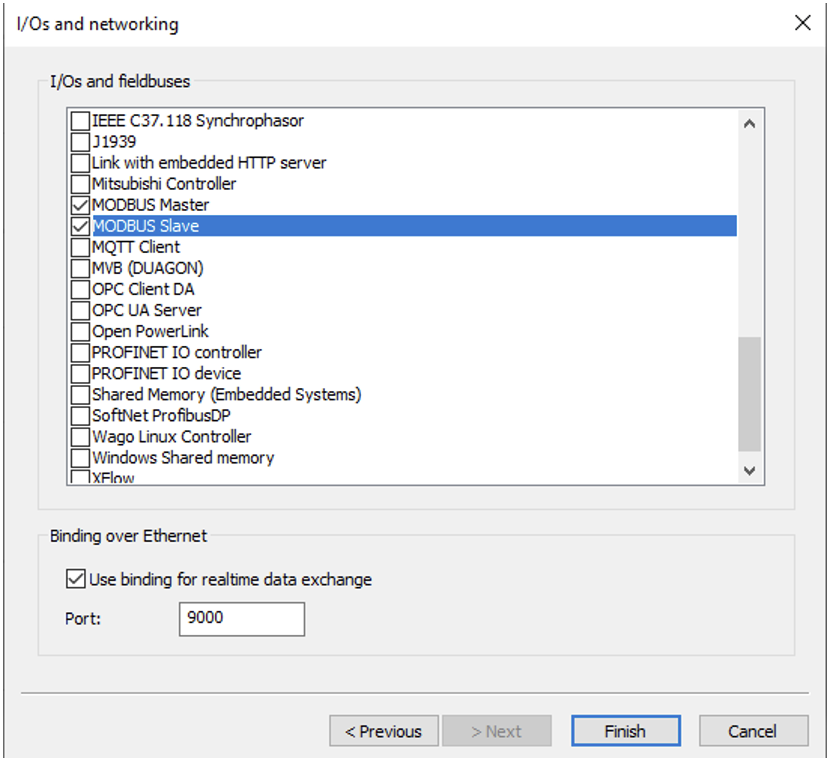

When the project is first created. After creating a new project the option to select a Fieldbus driver will come up. Select the driver you would like to use in the project. Go to the Fieldbus configuration to configure the protocol.
-

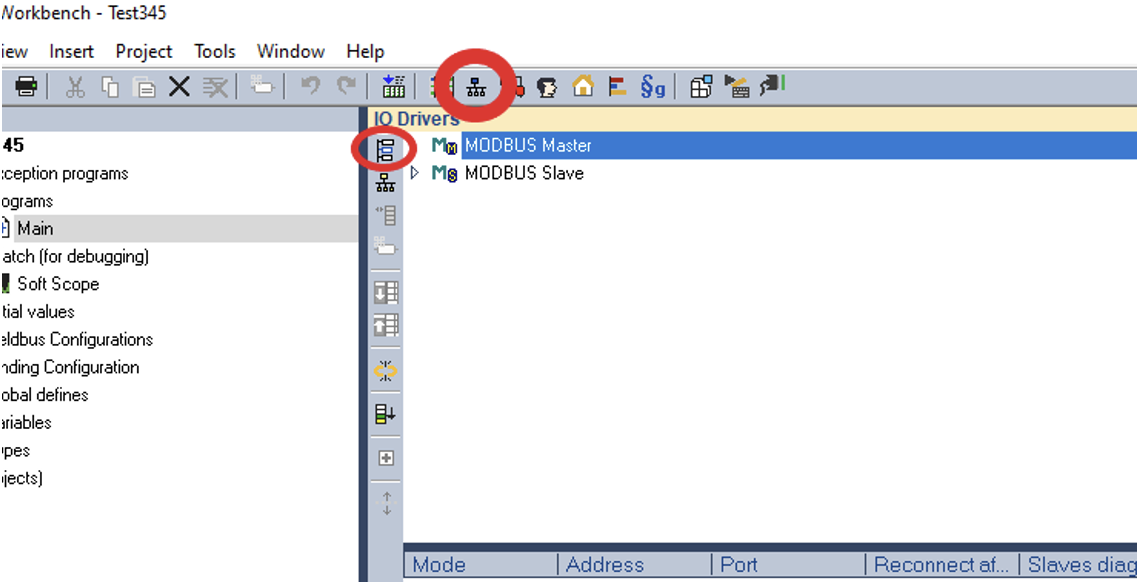

Adding a Fieldbus protocol in an existing project. Protocols may be added after a project is created. In the main project window click on the Fieldbus icon on the toolbar. Add a Fieldbus configuration by clicking on the ‘Insert Configuration’ icon in the I/O Drivers window. Delete a Fieldbus configuration by right-clicking on the configuration and selecting clear.
Disclaimer
It is the customer's responsibility to review the advice provided herein and its applicability to the system. Red Lion makes no representation about specific knowledge of the customer's system or the specific performance of the system. Red Lion is not responsible for any damage to equipment or connected systems. The use of this document is at your own risk. Red Lion standard product warranty applies.
