PLEASE NOTE:
Option cards for the PAX series of panel meter will not work with the PM50 meters. They are a different modular design.
APPLICABLE PRODUCTS
All PM50 panel meters
- PM500A0301600F00 3.5" Analog Input Graphical Panel Meter.
- PM500A0400800F00 4.3" Analog Input Graphical Panel Meter.
- PM500D0301600F00 3.5" Digital Input Graphical Panel Meter.
- PM500D0400800F00 4.3" Digital Input Graphical Panel Meter.
PRE-REQUISITES
- The 3.5 inch 1/16TH DIN panel meter can support up to three option modules.
- The 4.3 inch 1/18TH DIN panel meter can support up to five option modules.
- Only one module of a given part number can be installed to any given PM50 panel meter.
- Two SSR outputs on board standard both must be set NPN or PNP.
- RS485 MODBUS standard
IN THIS ARTICLE

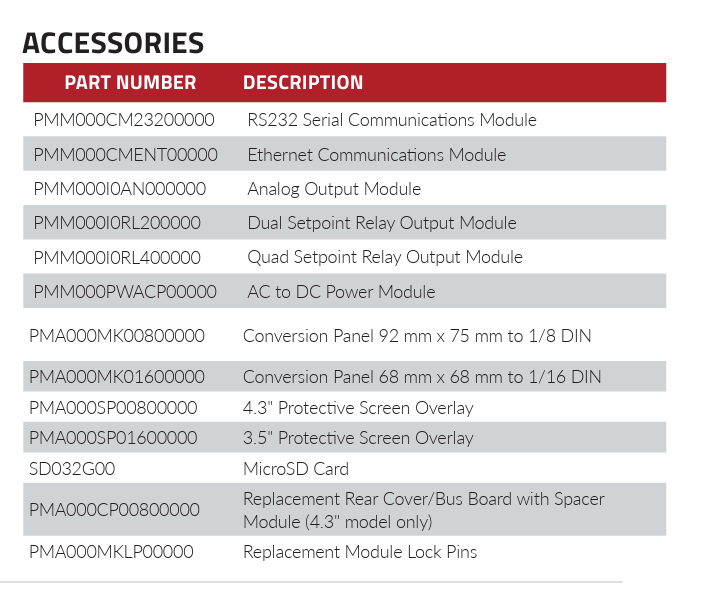

- List of optional PM50 panel meter part numbers.
- Installation procedure for both 3.5 and 4.3 inch versions.
- PAX series panel meter option card conversion to PM50 option module part numbers.

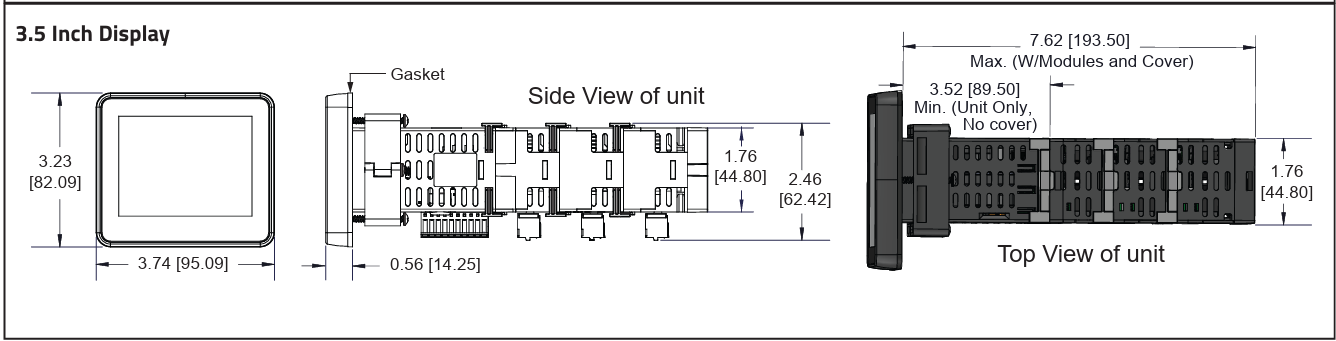

Installation diagram for the 3.5 inch PM50 panel meter

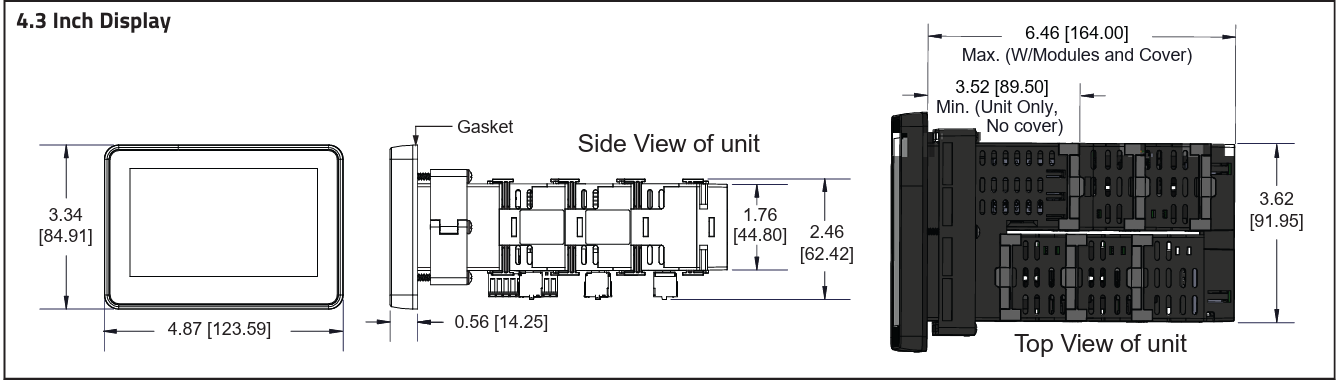

Installation diagram for 4.3 inch PM50
PAX series option card numbers and there equivalent PM50 option module part number
PAXCDC10- RS485 is standard on the PM50 panel meter.
PAXCDC20 -convert to PMM000CM23200000 RS232 Serial Communications Module
PAXCDL10 -convert to PMM000I0AN000000 Analog Output Module
PAXCDS10 -convert to PMM000I0RL200000 Dual Setpoint Relay Output Module
PAXCDS20 -convert to PMM000I0RL400000 Quad Setpoint Relay Output Module
Additional Info
PM50 Analog Installation Guide
PM50 Digital Installation Manual
