To get the Function buttons to display on the bottom of the PM50 screen:
Login to the PM50 and click onto DEVICE
Then go right to Function Key Configuration and setup Function Keys.
Set the switch to YES then press Right.
Now you can name each Function button.

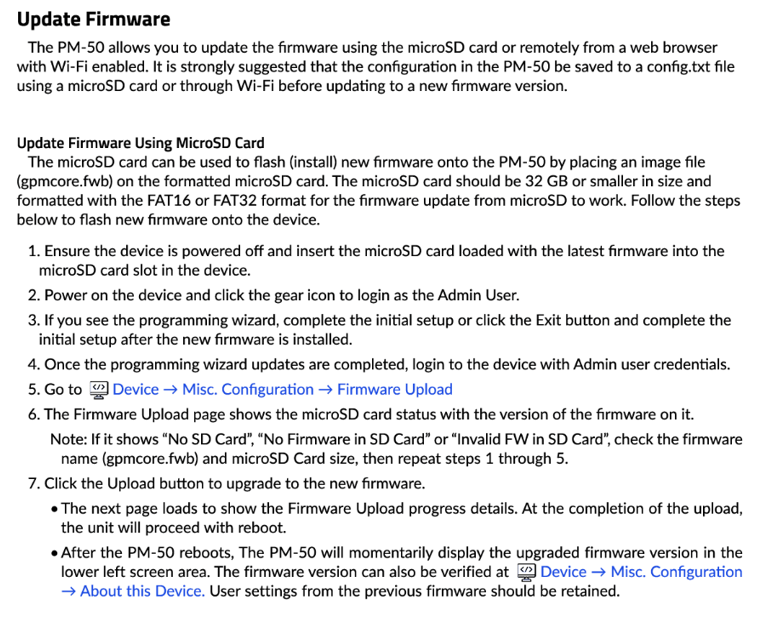

To make the setpoint changeable option viewable, you must have Firmware Ver 1.4.3 or newer installed in your PM50.
Upgrading the Firmware needs to be completed via the Micro SD card upload.
Disclaimer
It is the customer's responsibility to review the advice provided herein and its applicability to the system. Red Lion makes no representation about specific knowledge of the customer's system or the specific performance of the system. Red Lion is not responsible for any damage to equipment or connected systems. The use of this document is at your own risk. Red Lion standard product warranty applies.
Red Lion Technical Support
If you have any questions or trouble contact Red Lion Technical Support by clicking here or calling 1-877-432-9908.
For more information: http://www.redlion.net/support/policies-statements/warranty-statement
