This article describes how to set the gateway PROFIBUS DP network address correctly.
APPLICABLE PRODUCTS
ABC3000,ABC3100,ABC4021,ABC4014,ABC4023,ABC4018,ABC4091
QUESTION

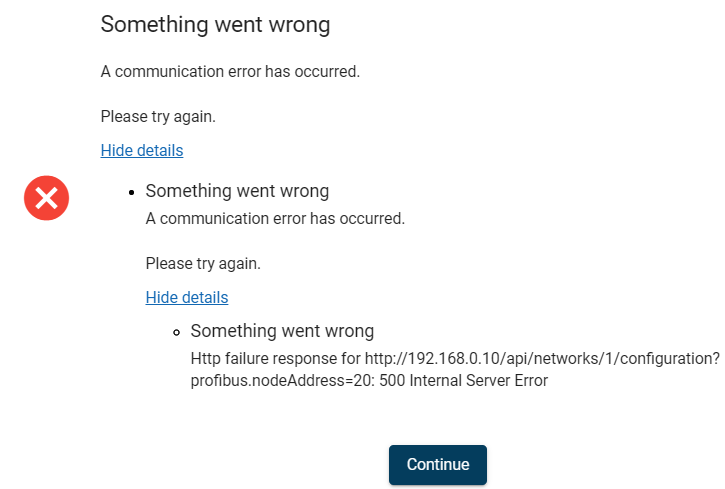

Setting the gateway PROFIBUS DP network address in the configuration interface, there was an error message when downloading the configuration.
ANSWER
There are 2 ways to set the gateway PROFIBUS DP network address:

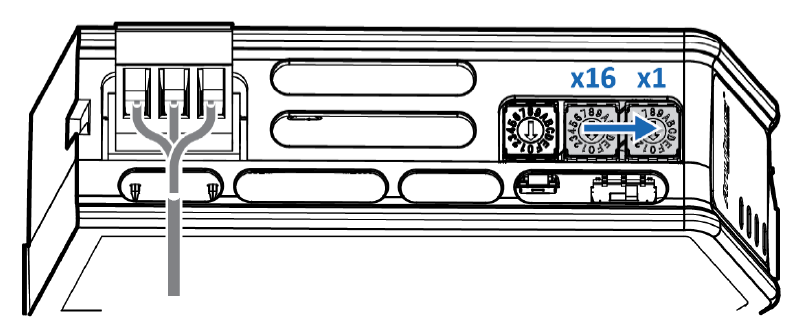

1. Set the address with the rotary switches at the top of the gateway.
When opening the built-in web interface of the gateway, system will automatically read the DP network address without modification.

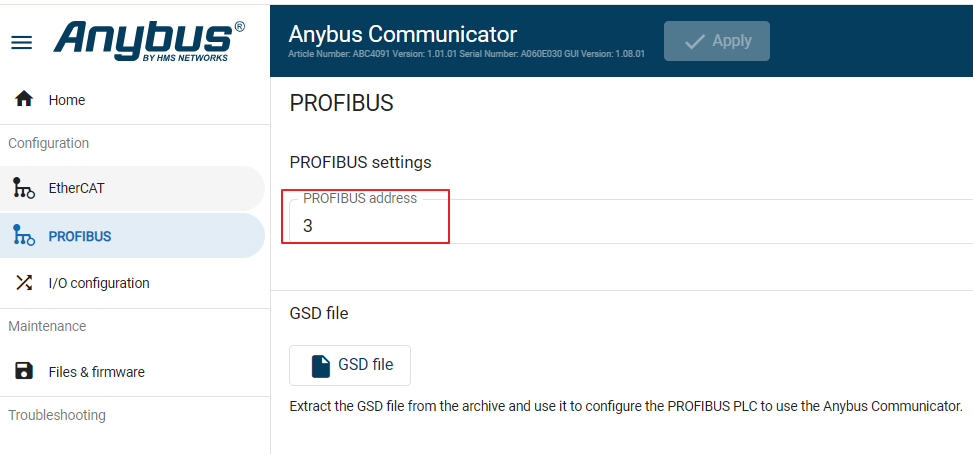

2. Set 3 rotary switches to 000, enter the PROFIBUS address in the PROFIBUS address field configuration page.
Notes：
1. Choose one way to set the address.
2. Please restart the module after changing the rotary switches.
ADDITIONAL INFO
Reset Anybus Communicator to factory settings
